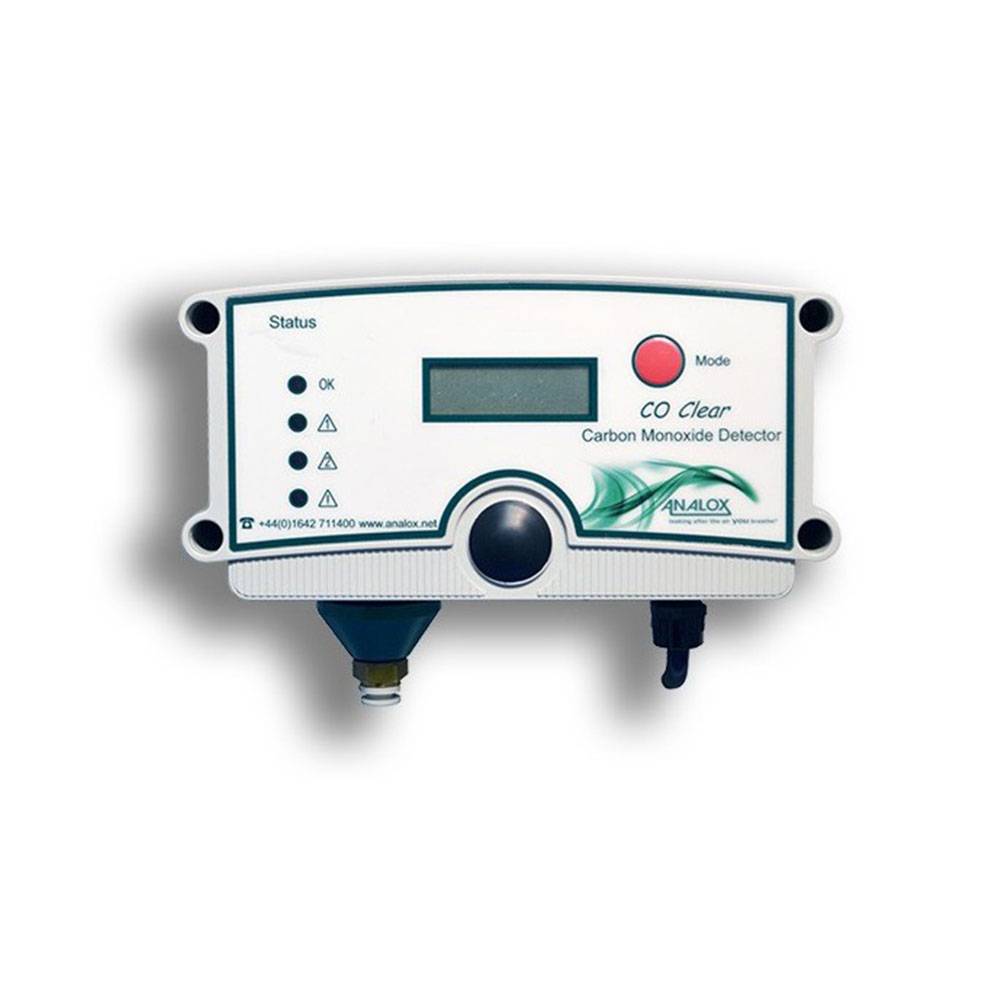

ANALOX CO CLEAR Analyzer

ANALOX CO CLEAR Analyzer

The ANALOX CO CLEAR is a carbon monoxide analyzer designed to detect contamination in air and Nitrox compressors. A special CO Clear Helium (He) version is also available for Heliox compressors.

An essential safety device

Carbon monoxide is a toxic and potentially lethal gas. The CO Clear provides online wall-mounted monitoring to alert the operator of any contamination before it reaches the diving cylinders.

Technical specifications

• Measurement range: 0 to 25 ppm (standard), 0-10 ppm (optional)
• Accuracy: < ±1 ppm
• Operating temperature: 0 to 40°C
• Response time: < 90 seconds
• Input pressure: 1 to 3 bar
• Protection rating: IP65
• Power supply: 230 VAC (others on request)
• Dimensions: 175 x 130 x 70 mm
• Weight: 400 g

Available options

• Relays to shut down the compressor or trigger remote alarm
• Audio and visual alarms with dual thresholds
• 4-20 mA outputs

Analox recommends using a two-stage regulator to reduce sampling pressure between 1 and 3 bar.
