Pro personal filter / air 414 bar with DIN fittings

Pro Personal Filter / Air 414 Bar (DIN): Superior Protection for Divers

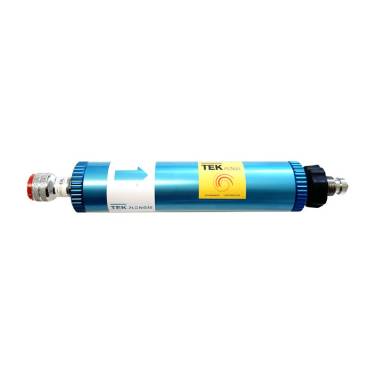

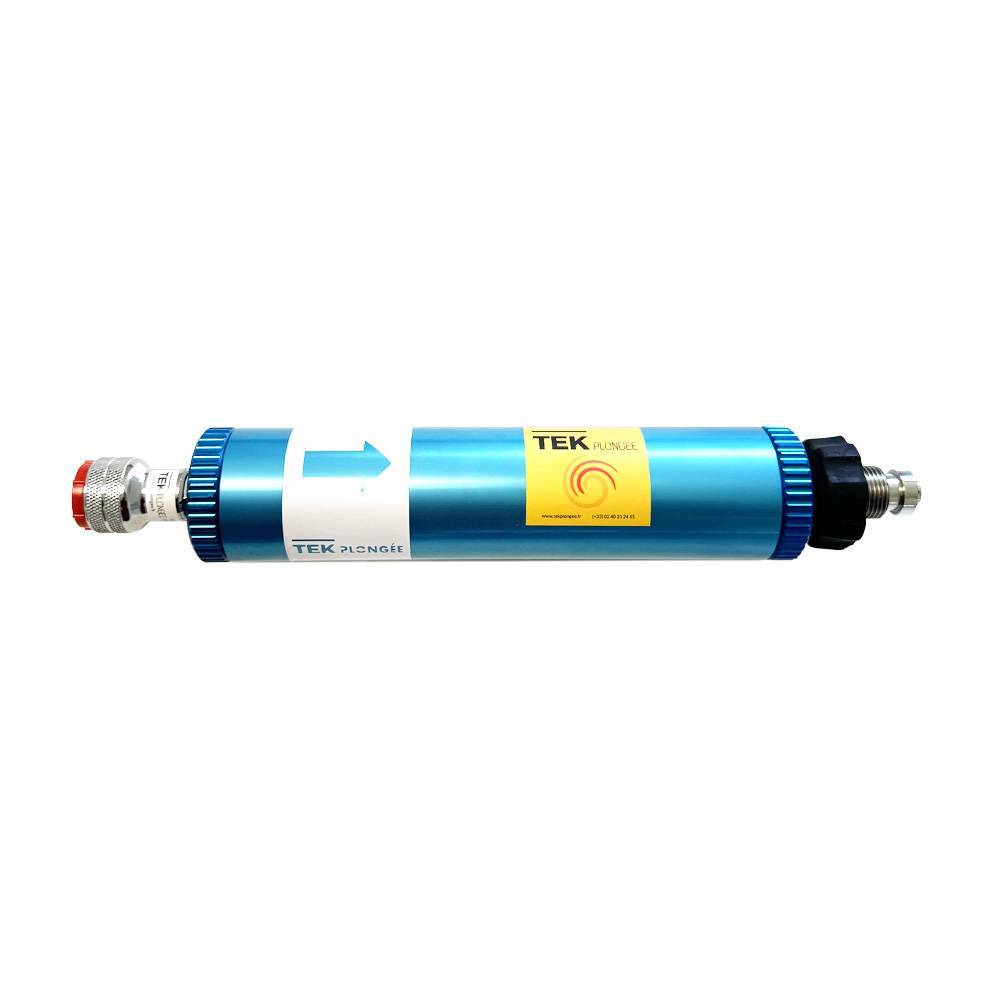

This professional-grade personal filter, made of blue anodized aluminum, ensures optimal air protection when filling your diving cylinders. It effectively removes impurities, protecting your cylinders, especially "Oxy-clean" ones, from potential contamination due to a poorly maintained compressor. It is equipped with DIN fittings for easy connection.

Key Features:

• Professional Protection: Filters air for maximum safety.
• Durable Material: Blue anodized HE30 aluminum pressure resistant (414 bar).
• Efficient Filtration: Effective filtration cartridge.
• High Flow Rate: Works with a maximum flow rate of 283 L/min.
• Extended Autonomy: Filters approximately 50 x 12-liter cylinders per cartridge.
• DIN Fittings: For a secure and standardized connection.

Technical Specifications:

• Working Pressure: 414 bar
• Test Pressure: 850 bar
• Dimensions: 250 x 55 mm (excluding fittings)
• Fittings: DIN inlet and outlet (230 bar standard, 300 bar or Nitrox M26X200 on request)

Package Contents:

• Blue anodized aluminum filter body (414 bar)
• Filtration cartridge
• DIN fittings (inlet and outlet)

Consumables:

• Filtration cartridge: TEK20520
• Replacement seal kit: TEK2F300SK

Important Note:

This filter is not designed for pure oxygen. The use of a check valve is strongly recommended for Nitrox cylinders to prevent explosion risks during filling.
