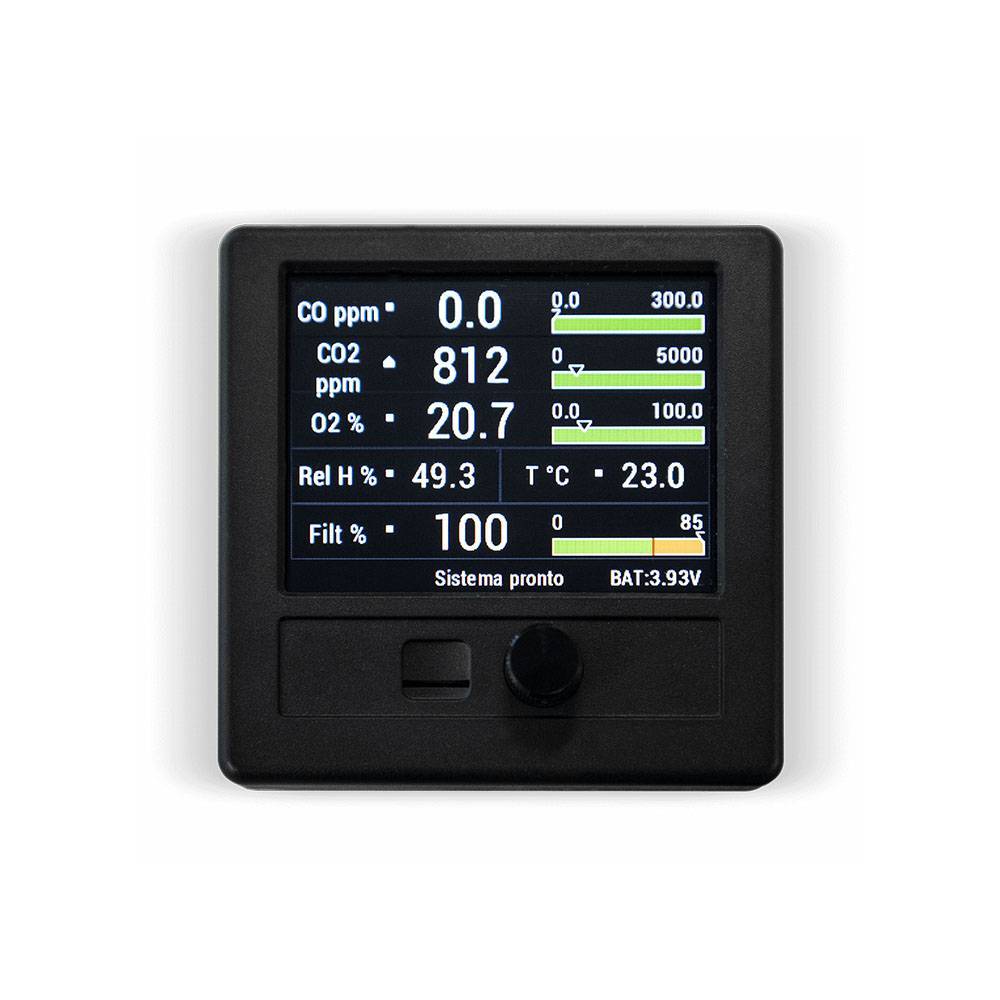

COLTRI Multigas Analysis System

COLTRI Multigas Analysis System: Precise and Reliable Air Quality Control

The COLTRI multigas analysis system is an advanced measuring instrument designed to monitor and control air quality in various applications, including industrial, medical, and safety environments. It offers precise and real-time analysis of several essential gases.

Key Features:

• Multigas Monitoring: Capable of detecting and measuring up to 6 gases simultaneously.
• Wide Range of Sensors: Available with sensors for oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO), humidity (H2O), volatile organic compounds (VOCs), helium, and temperature.
• Two Versions Available: Choose between the standard version (CO, CO2, H2O) or the advanced version with VOC detection.
• High Precision: 24-bit A/D converter and automatic temperature compensation for reliable measurements.
• Intuitive User Interface: TFT color screen, rotary knob, and acoustic alarm for easy operation.
• Data Logging: Micro SD card reader/writer for later tracking and analysis.

Technical Specifications:

• Input Voltage: 10-35 Vdc
• Battery: Integrated rechargeable lithium-ion
• Resolution: 0.1% Full scale +/- ½ LSB
• Sampling Time: 100 ms (min) per channel
• Microprocessor: Cortex M4

The COLTRI multigas analysis system is an indispensable tool to ensure safety and air quality in the most demanding environments.
