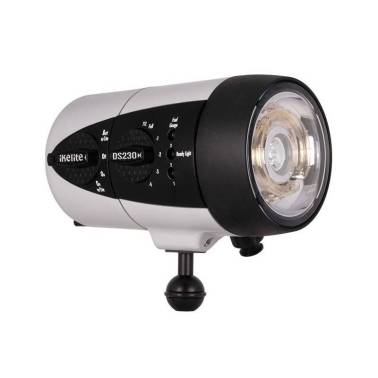

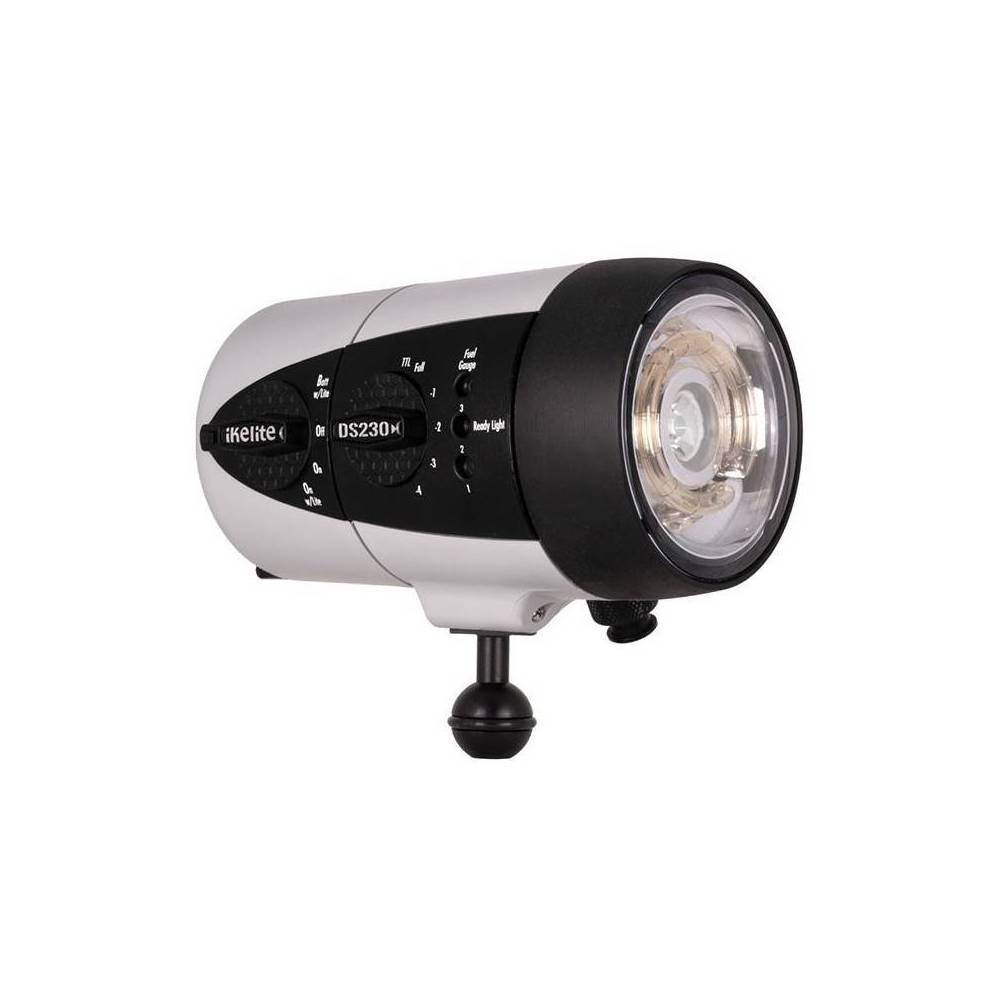

DS230 TTL flash with Ikelite modelling light

A professional flash

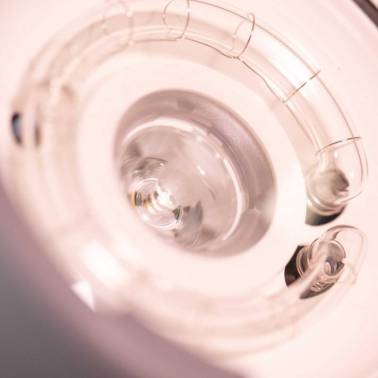

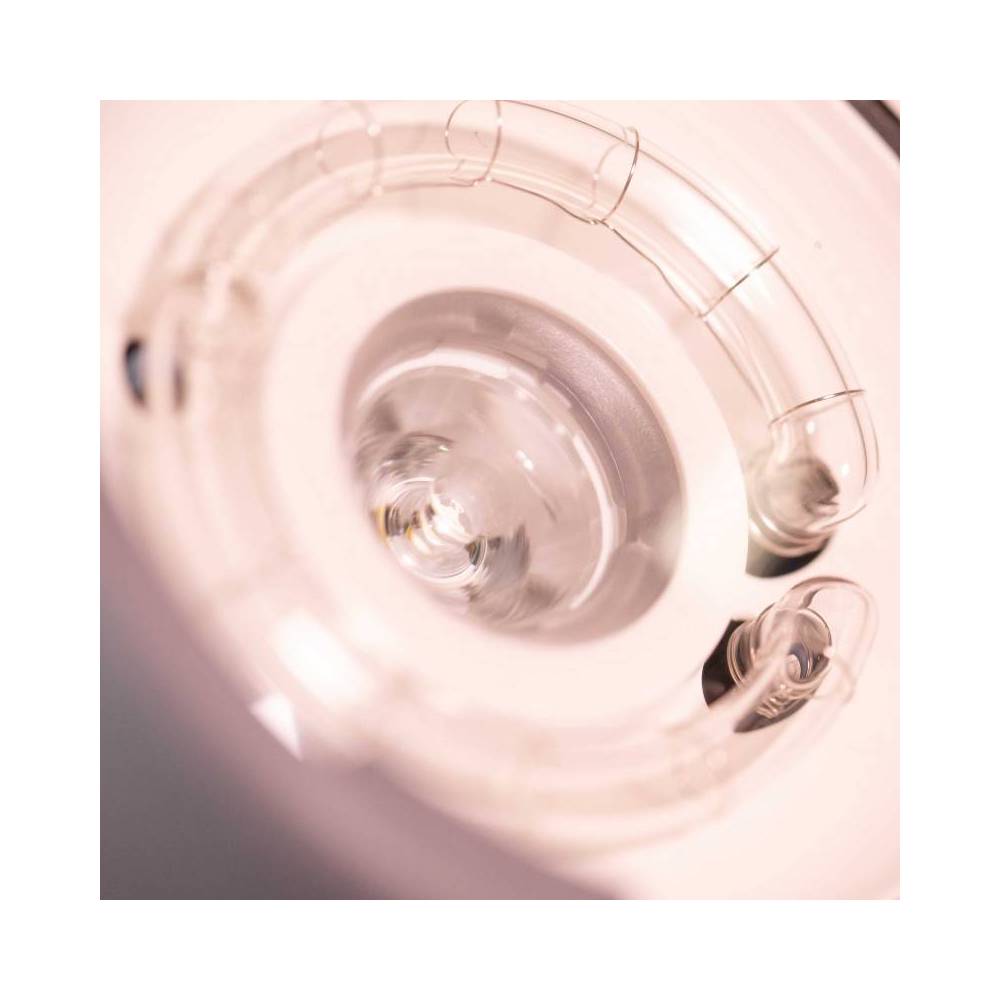

The Ikelite DS230 flash is one of the most preferred flashes by professional photographers worldwide. Its high lighting power, round tube, and the specific reflector surface treatment allow for soft and homogeneous lighting, ideal for underwater shots.

An effective pilot light

Its integrated 205-lumen pilot light makes autofocus easier in low-light conditions. It is also ideal for night dives as an exploration light.

Exceptional performance

• Reliability and durability: The DS230 flash has long been the choice of professionals who need a reliable waterproof flash. It has been tested in extreme conditions, including under Antarctic ice.
• Battery life: The Ni-MH battery allows for 300 full-power flashes with an ultra-fast recharge time of 1.2 seconds.
• Worldwide compatibility: The charger accepts voltages between 100 and 240V, making it usable worldwide.

TTL exposure mode

When combined with an Ikelite housing equipped with TTL electronics, the flash automatically adjusts the exposure, ideal for macro or ambient shots.

Included:

• 1 flash 213 watts/second DS230 pilot light version
• 1 Ikelite grease packet
• 1 Ni-MH battery charger 0083.93 with European plug
• 1 ball mount support 4081.4
• 1 manual in English (French manual available in the "download" tab of this product page)

Flash technical specifications:

• Weight: 1.24 kg with Ni-MH battery
• Power: 4 to 213 watts/second
• Beam angles: 120°
• Guide number (ISO100): 32 (24 with diffuser)
• Modes: TTL/automatic, manual, 9 power settings in 1/2 stops
• Color temperature: 4800° Kelvin
• Number of flashes: 300 at full power
• Recharge time: 1.2 seconds at full power (shorter time in intermediate power modes)
• Operational depth: 90 meters
• Pilot light: 205-lumen LED
• Dimensions: Diameter 91 mm, length 179 mm
• Buoyancy: Slightly negative in saltwater
• This reference corresponds to the flash without battery and charger.

Additional accessories and spare parts:

• Rail adapter for mounting on 25 mm ball arm: IKE 4081.4
• Rail adapter for mounting on Flex arm: IKE 9573.4
• Dual sync cable compatible TTL Ikelite / Ikelite: IKE 45152
• Battery pack seal: IKE 0132.36
• Flash diffuser: IKE 4069.2
• Spare Ni-MH battery pack: IKE 40066BK

Additional information:

The guide number of a flash refers to the light intensity at the center of the beam. Ikelite has chosen to slightly sacrifice the guide number in favor of a soft, homogeneous image without hot spots. The coverage angle of Ikelite flashes is significantly above the average in the market (55-70°).
