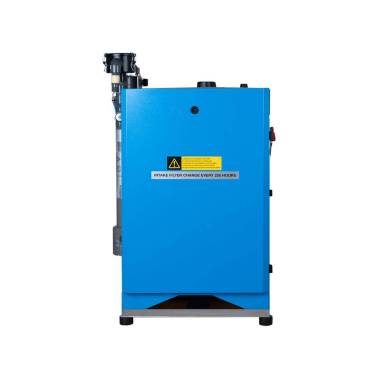

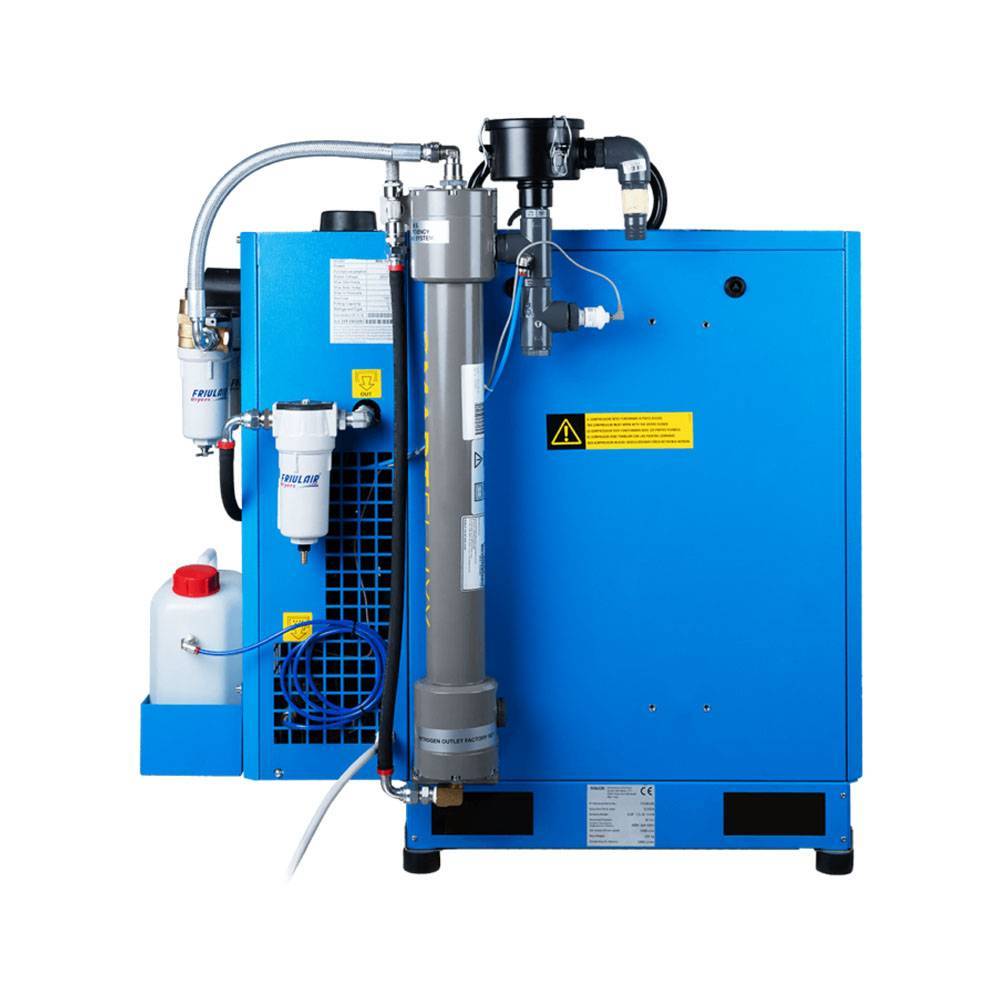

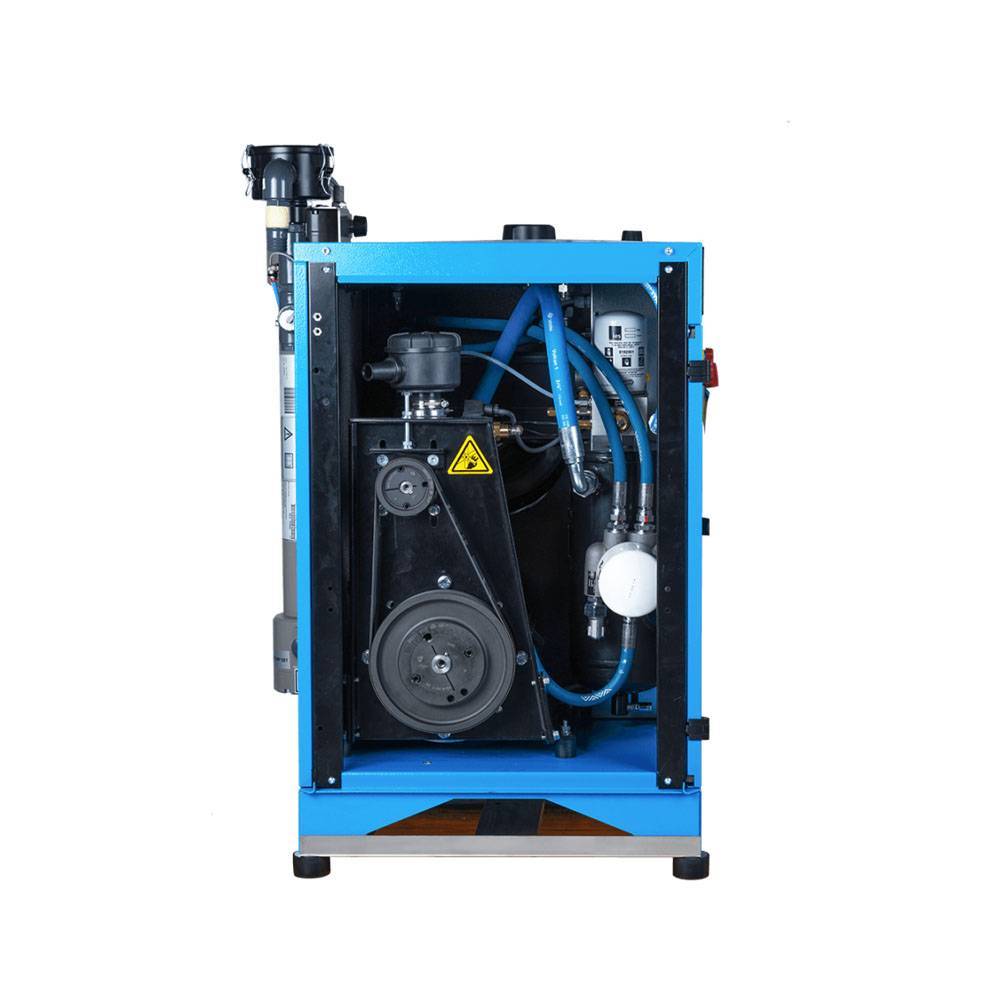

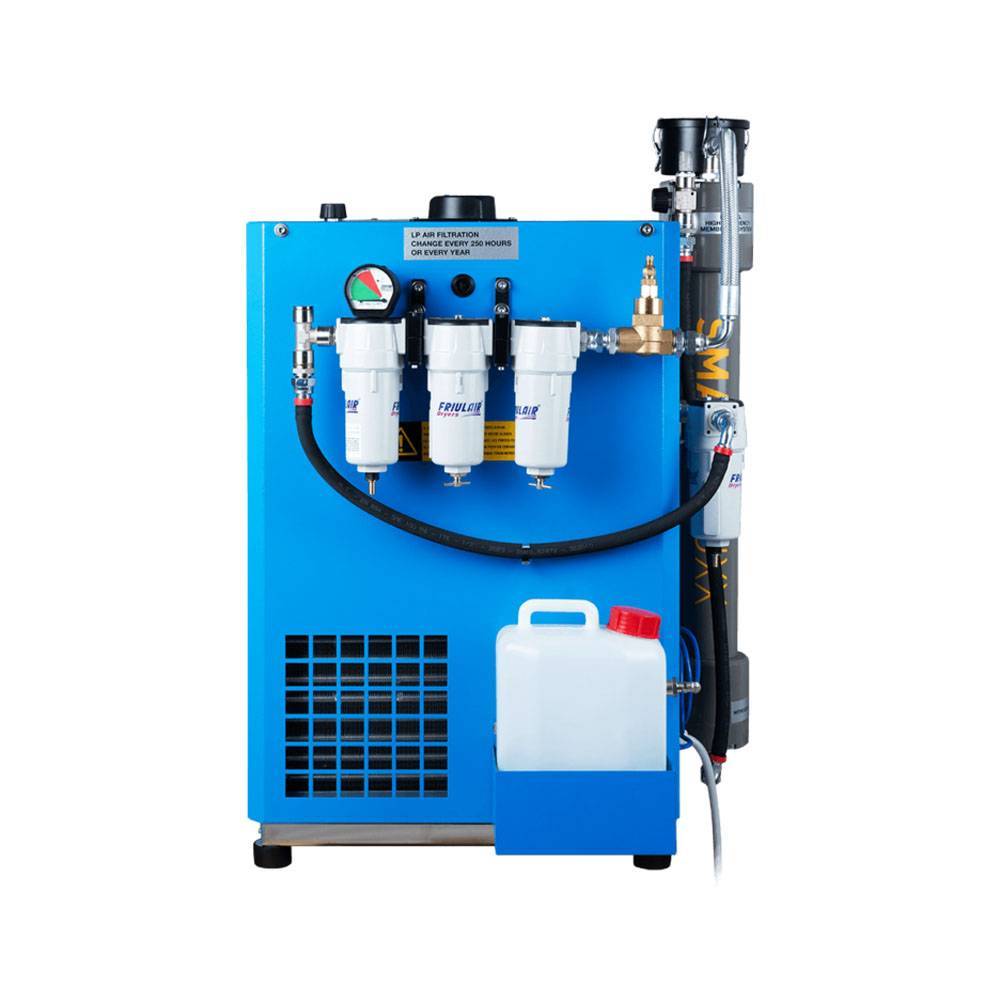

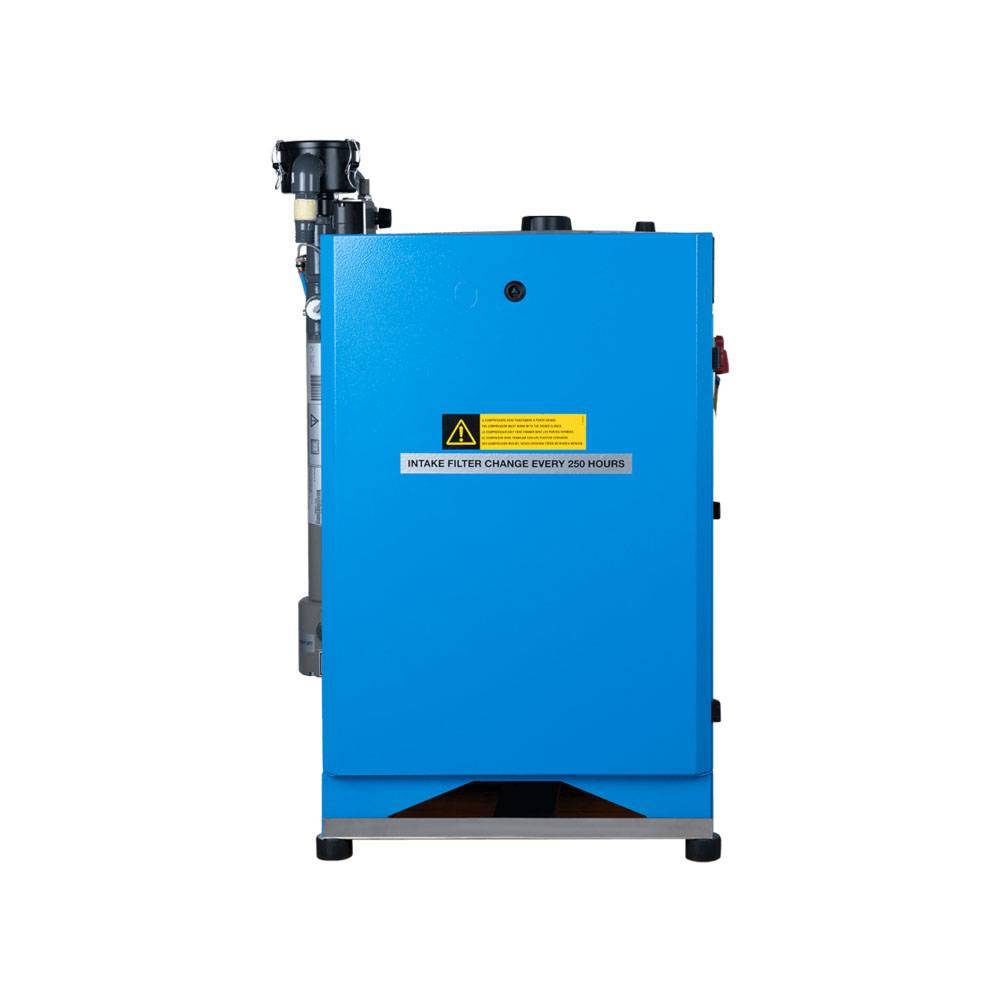

COLTRI C-NITROX P320 Nitrox membrane compressor

C-NITROX P320: Nitrox Production

The C-NITROX P320 is an ambient air filtration system designed to produce Nitrox. It uses a Parker membrane to separate nitrogen from oxygen, resulting in an oxygen-enriched mixture up to 36% at a maximum atmospheric pressure of 10 bar. This low-pressure Nitrox requires an external high-pressure compressor (up to 232 bar) to be compressed and used in diving cylinders. The C-NITROX P320 connects to the high-pressure compressor via a hose, allowing the transfer of Nitrox for compression.

Operation and Settings:

• Precise adjustment of the oxygen percentage (up to 36%) via a valve on top of the device.
• Dual oxygen analyzer for continuous and reliable mixture control.

Included Equipment:

• Electrical panel for simplified operation management.
• Automatic condensate purge, reducing maintenance interventions.
• Parker membrane: gas separation technology for efficient Nitrox production.
• Thermostat: maintaining an optimal temperature for the proper functioning of the system.

Technical Specifications:

• O2 Percentage: Adjustable up to 36%.
• Working pressure (Parker membrane): 10 bar (maximum atmospheric pressure).
• High-pressure compressor required: Up to 232 bar (not included).
• Note: The maximum oxygen percentage is guaranteed, even with the use of lower capacity auxiliary compressors.
