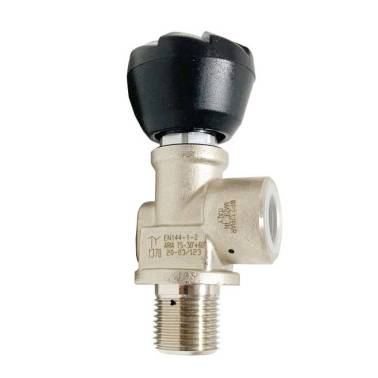

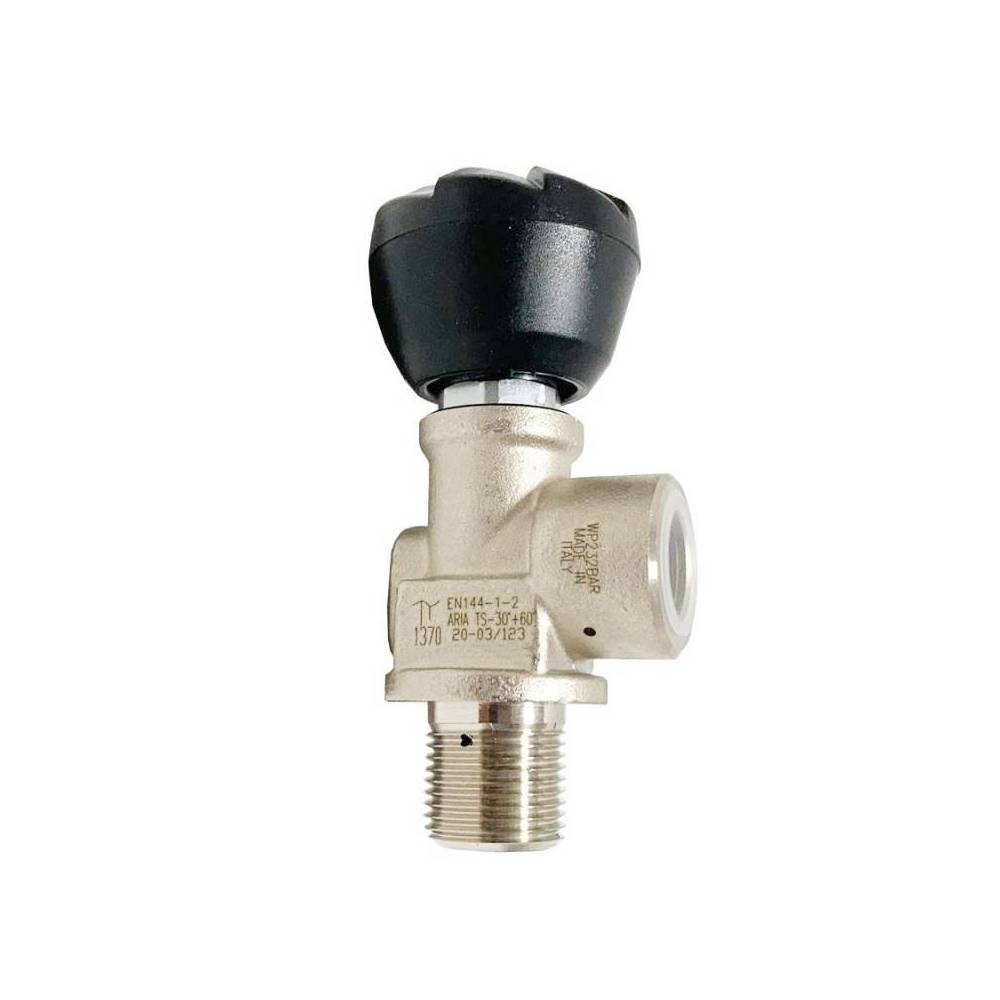

Mono Valve DIN 230 BAR Vertical PI
230 bar valve for 15L bottle (25x200). DIN outlet, PI standard (10-year inspection). Gasket included. 25E incompatible.
Mono Valve DIN 230 BAR Vertical PI
This valve is specially designed for 15 liter (B15) storage bottles with 25x200 threading. It is equipped with a DIN 230 bar (G 5/8) outlet and complies with the PI standard, which allows the regulatory inspection to be extended to 10 years for PI marked blocks. Please note that it is not compatible with bottles with 25E tapered threading. A gasket is included in the delivery.
Technical specifications:
- Working pressure: 230 bar
- Bottle thread type: 25x200
- Outlet thread type: DIN 230 bar (G 5/8)
- Approximate weight: 610 grams
- Construction material: Nickel-plated brass
