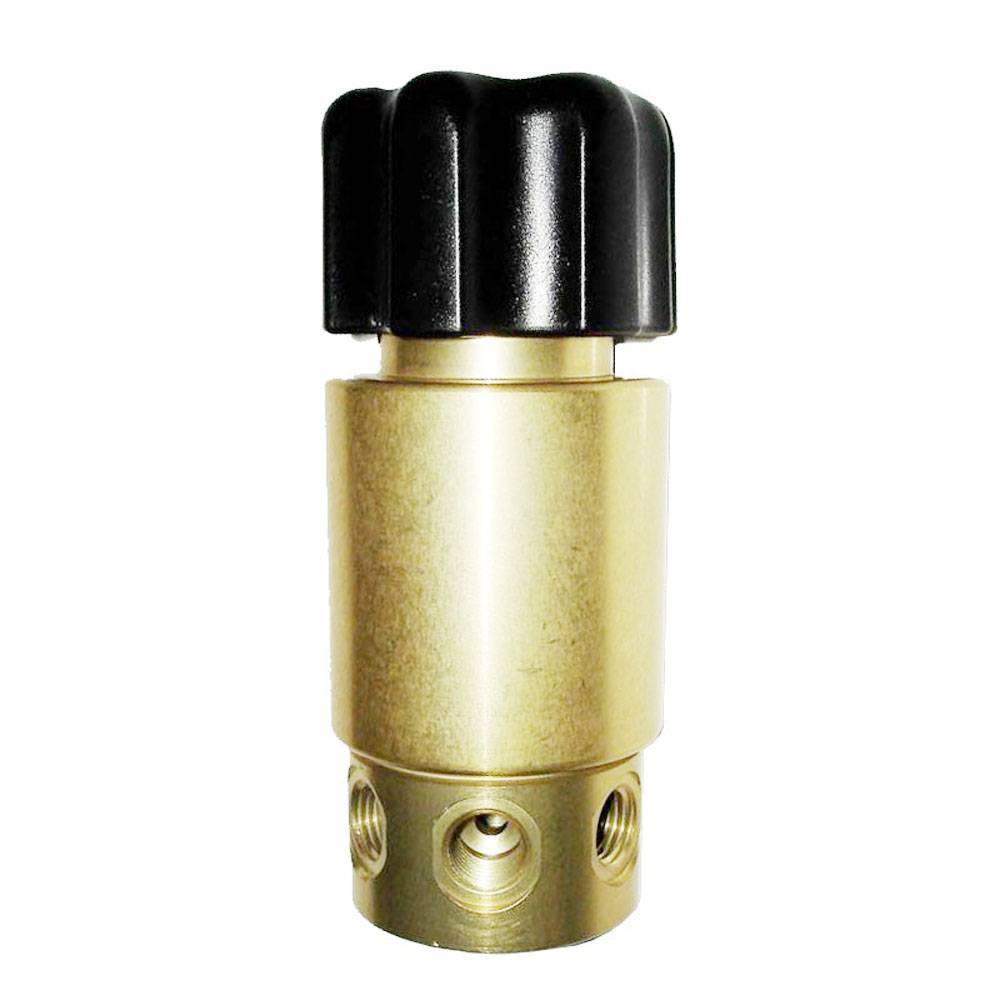

414 bar adjustable high-pressure regulator

Compact high-pressure regulator TEK2G000

Designed for group 2 gases (air, nitrogen, helium...), this piston regulator offers precise manual adjustment and great robustness. Its sealing seat, protected by an integrated filter, ensures increased longevity. The inlet and outlet threads allow the addition of pressure gauges for optimal pressure control.

Technical specifications:

• Reference: TEK2G000
• Type: Piston regulator
• Working pressure: 414 bar (6000 psi)
• Outlet pressure: 4 to 414 bar (50 – 6000 psi)
• Inlet/outlet connection: 2 x 1/4" NPT female
• Seat material: KEL-F Viton
• Flow coefficient (Cv): 0.06
• Weight: 725 g
• Minimum temperature: -15°C

Compatible accessories:

• Locking cap TEK20755
• Mounting flange for panel mounting TEK20750
• 1/4" male NPT plug

Maintenance:

Maintenance kit TEK20760
