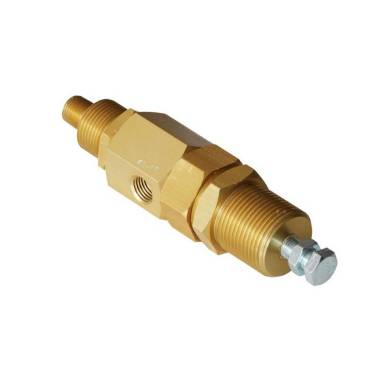

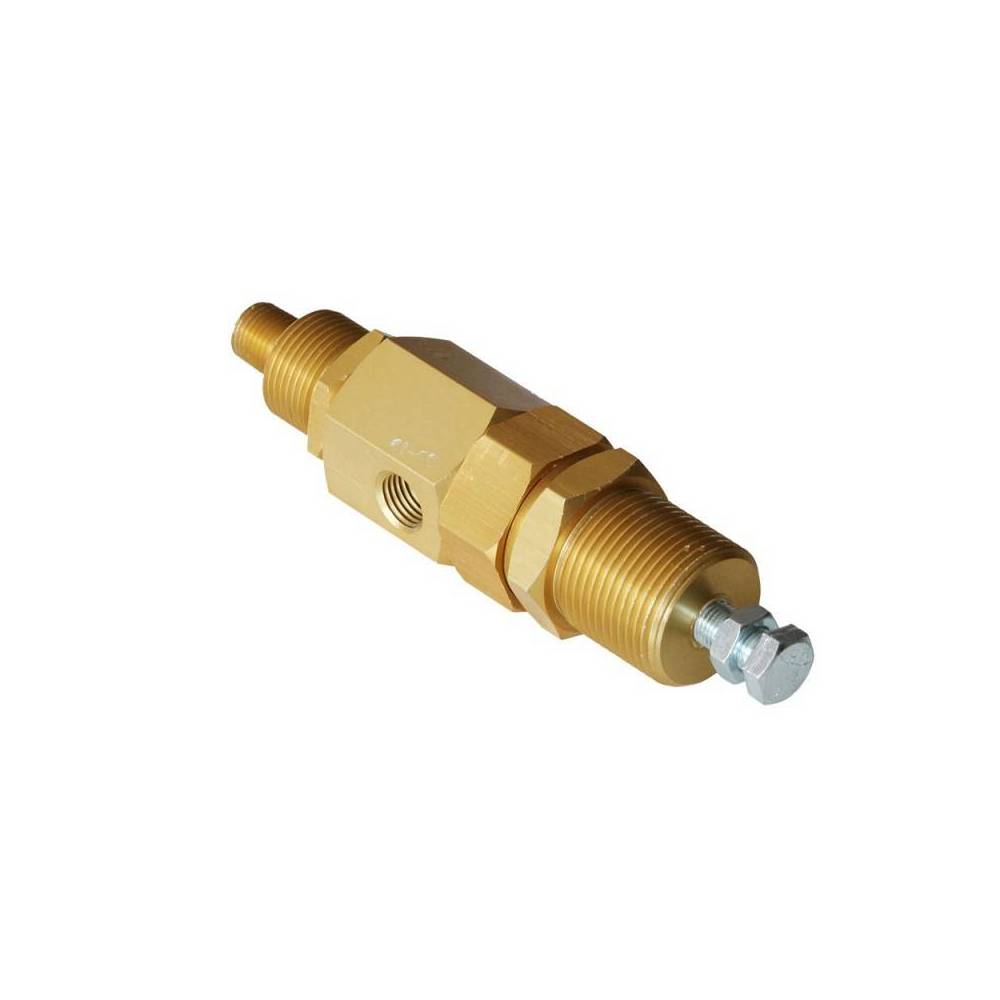

High-pressure regulator 414 bar
High-pressure regulator 414 bar (air, nitrogen, helium). Compact, manual adjustment, integrated filter. Outlet 4-414 bar.
High-pressure regulator 414 bar
This compact, manually adjustable regulator is designed for group 2 gases (air, nitrogen, helium, etc.). Its robust design integrates a filter to protect the sealing seat and a locking nut to secure the adjustment pressure.
Technical specifications:
- Reference: CSC000329/RID
- Type: Piston regulator
- Maximum working pressure: 414 bar (6000 psi)
- Outlet pressure range: 4 to 414 bar (50 – 6000 psi)
- Inlet connection: 1/4" NPT male
- Outlet connection: 1/4" NPT female (side outlet)
