Pro personal 414 bar air filter with check valve and purge in case

Pro personal / 414 bar air filter with check valve and purge in case

This professional personal filter, designed for individual use, guarantees purified diving air up to 414 bar. It is equipped with a check valve (AR) and a purge for increased safety and easy maintenance. Delivered in a shockproof carrying case, it is ideal for divers concerned about the quality of their air.

Technical specifications

• Service pressure: 414 bar
• Test pressure: 850 bar
• Material: blue anodized HE30 aluminum
• Dimensions: 250 x 55 mm (without fittings)
• Max flow rate: 283 L/min (16.8 m3/h)
• Cartridge life: approximately 50 12-liter cylinders

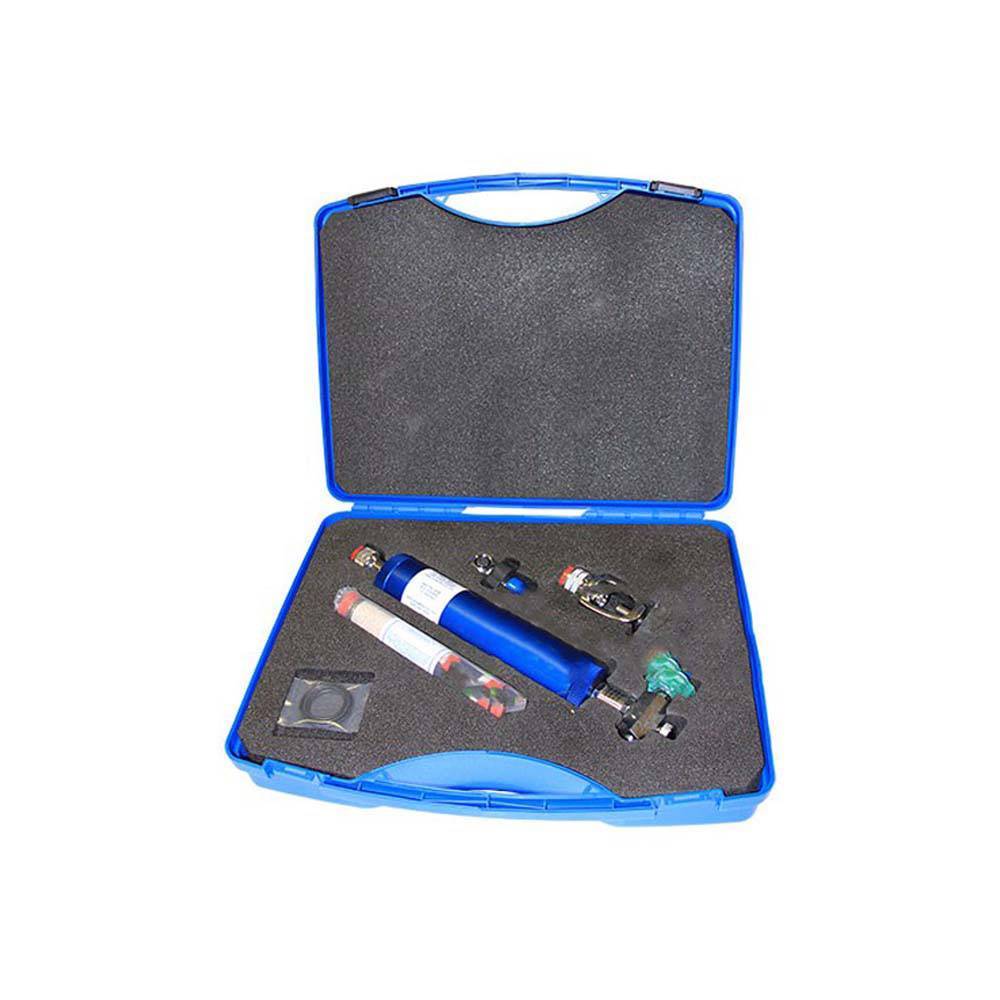

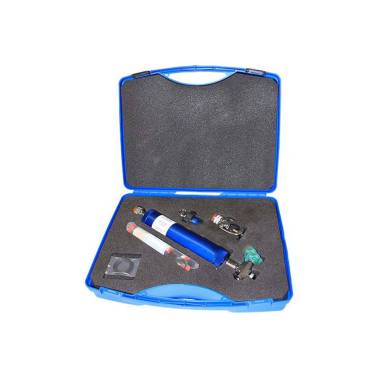

Case contents

• 1 414 bar blue anodized aluminum filter body
• 2 filter cartridges
• 1 O2 compatible check valve
• 1 3-way manifold with purge valve
• 1 1/4" G plug
• 1 230 bar DIN outlet (300 bar DIN or Nitrox M26X200 on request)
• 1 230 bar DIN female inlet (300 bar DIN or Nitrox M26X200 on request)
• 1 TEK206300SK spare seal kit
• 1 yoke/230 bar DIN female adapter
• 1 230 bar DIN male/yoke square adapter

Spare consumables

• TEK200520 filter cartridge
• TEK206300SK spare seal kit

Important note

This overfilter is not designed for pure oxygen filling.
