2-way 1/4 turn ball valve 414 bar

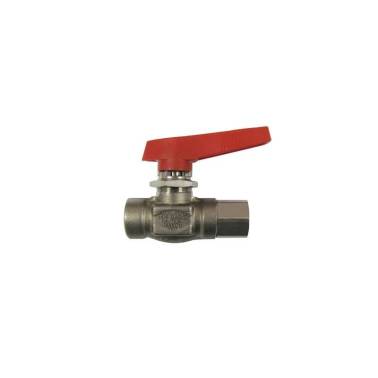

1/4 Turn Stainless Steel Ball Valve - 414 bar

Industrial grade 316L stainless steel valve, designed for high-pressure applications with compressed air and 40% Nitrox. Its 1/4 turn mechanism offers quick operation and visual position indication.

Features and Benefits

• Visual Indication: 1/4 turn handle (90°) for quick open/closed position identification.
• Bidirectional Sealing: Encapsulated PTFE seats and polished ball for optimal performance.
• Reduced Emissions: Packing ensures perfect sealing, even under vacuum or high pressure.
• Durability: Floating ball compensates for wear and temperature variations.
• Mounting: Panel mount compatible.

Technical Specifications

• Working Pressure: 414 bar (6000 psi)
• Connection: 1/4" NPT female (inlet/outlet)
• Materials: 316L stainless steel body, PTFE seats, Nylatron packing, Viton seals
• Bore Diameter: 6.35 mm
• CV: 0.40
• Compatibility: Compressed air, 40% Nitrox
• Temperature: -29°C to +249°C

Dimensions

• Total Length (with handle): 76 mm
• Body Length: 61 mm
• Width: 20 mm
• Packing Gland Diameter: 19 mm

Warning

Standard hydraulic valves (300-500 bar) are not suitable for high-pressure compressed air. Choose this stainless steel valve for better durability and safety.
