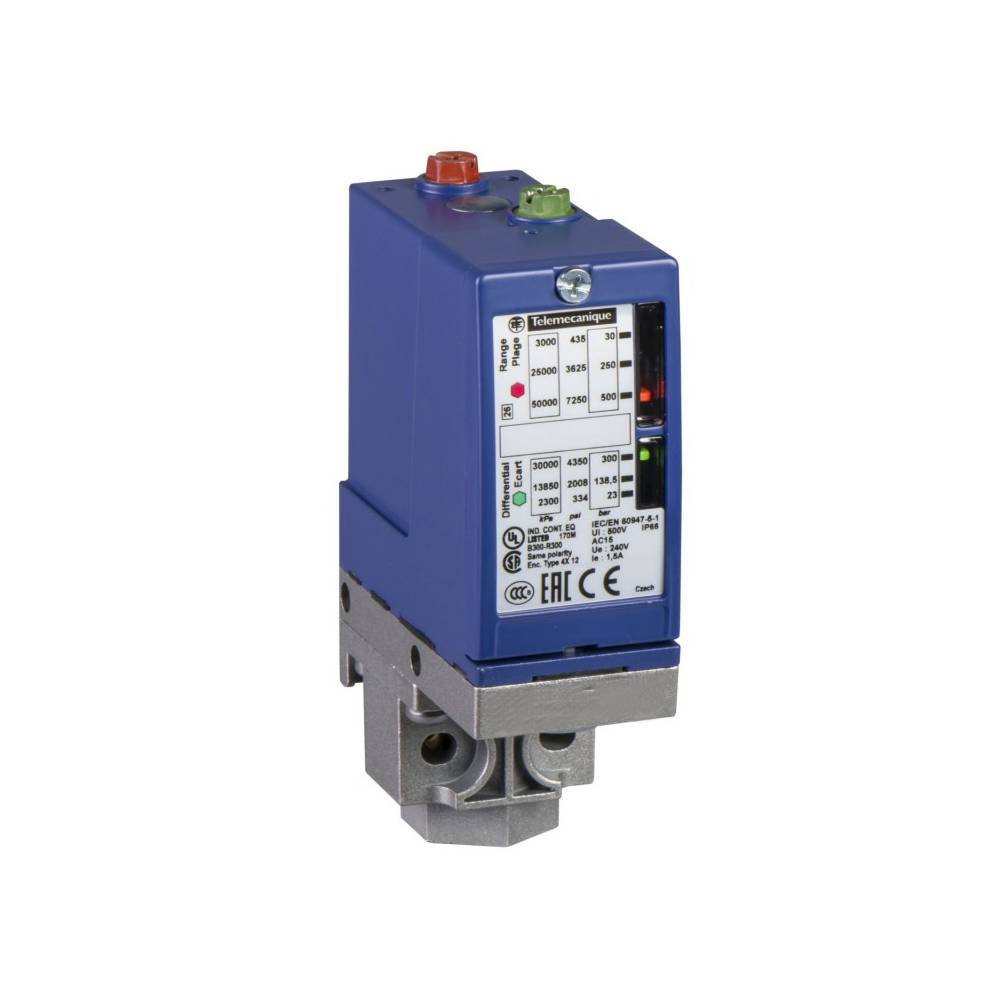

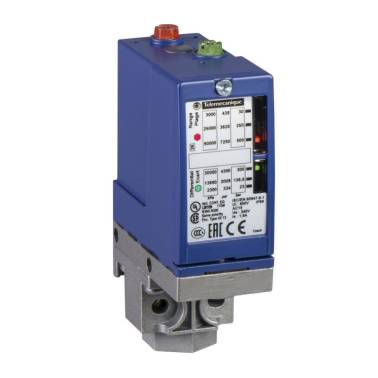

500 Bar Dual-Threshold Pressure Switch
500-bar dual-threshold pressure switch for compressors, enables start/stop regulation and optional solenoid valve control.
500 Bar Dual-Threshold Pressure Switch
Dual-threshold piston pressure switch ideal for setting compressor stop and restart pressures.
Main Features
- Maximum pressure: 500 bar
- Minimum pressure: 30 bar
- Adjustment differential: 7 to 447 bar
- Inlet connection: 1/4" female BSP
- Terminal block with 1 NO and 1 NC contact
- Rated current: 1.5A at 240V
- Maximum cycles: 3 million
- Dimensions: H:75mm, D:113mm, L:35mm
Applications
Can control the opening or closing of a solenoid valve or any electromechanical device to optimize and secure a high-pressure installation.
