High pressure compressor COLTRI Ergo 315 ET

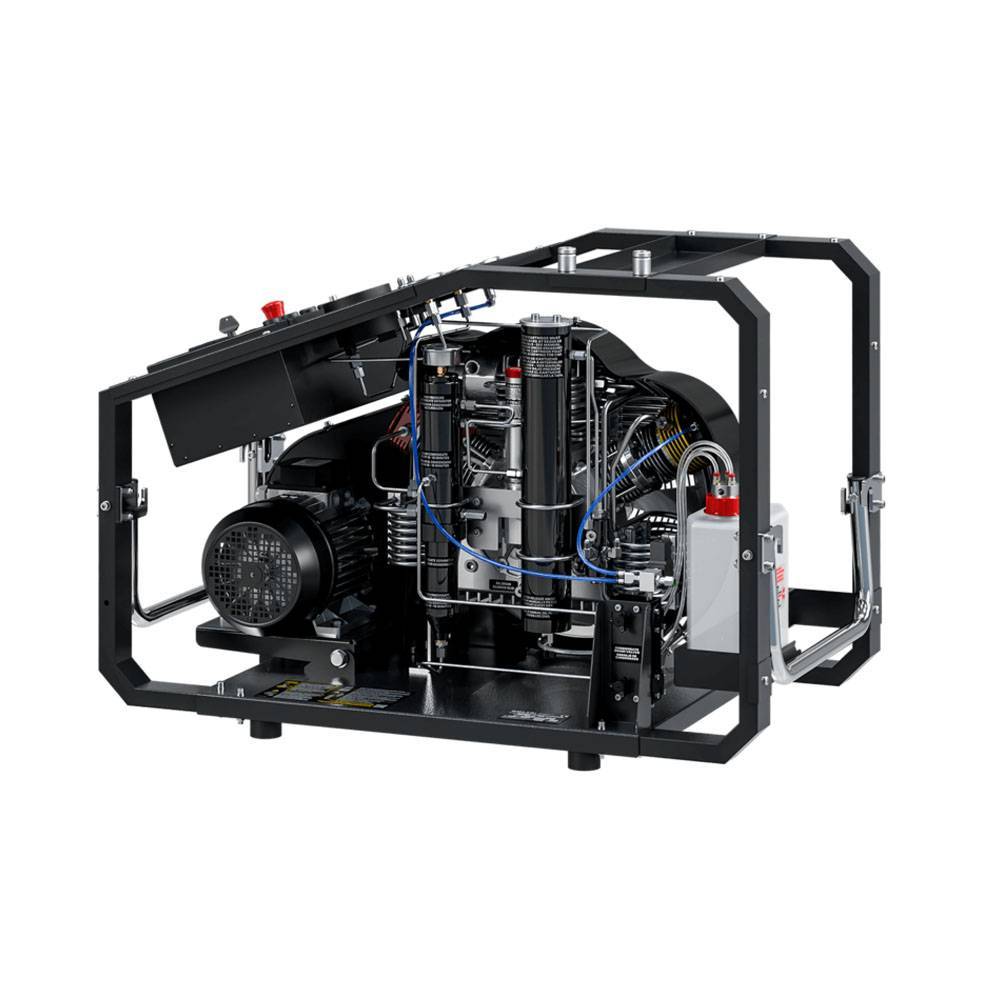

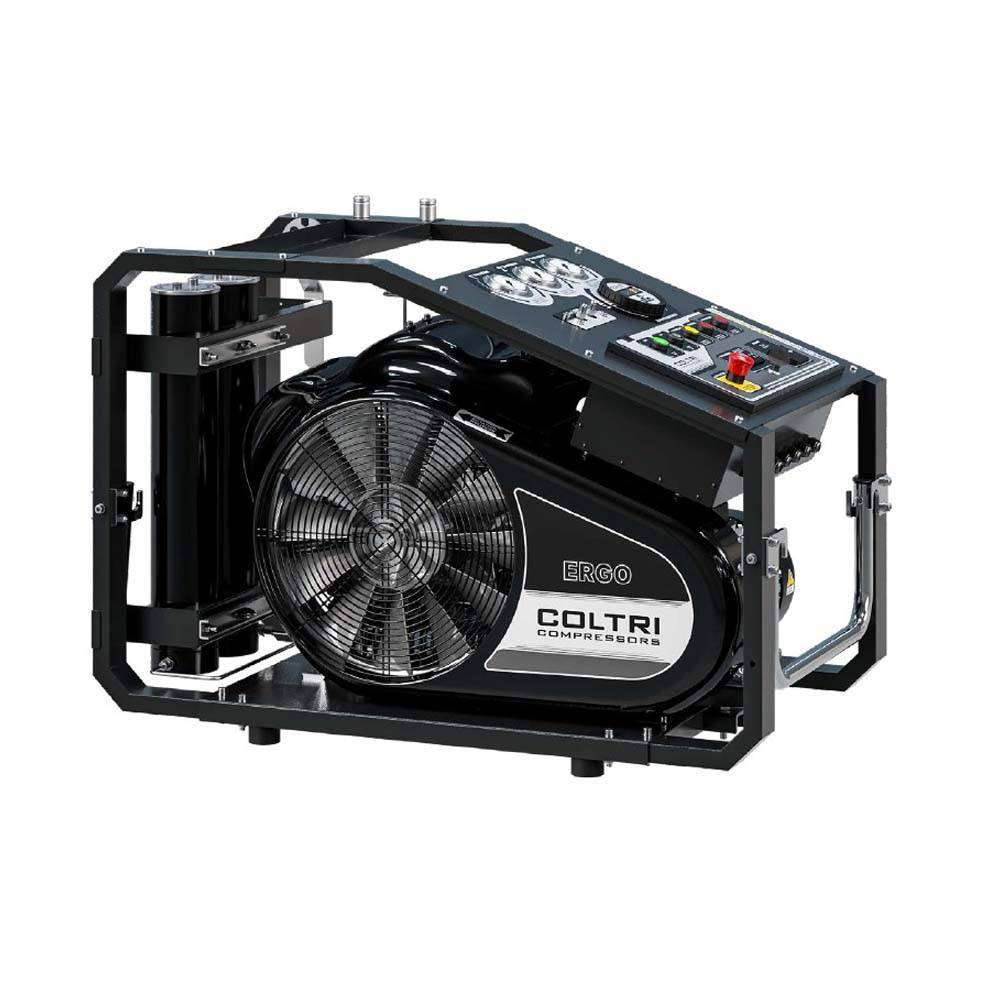

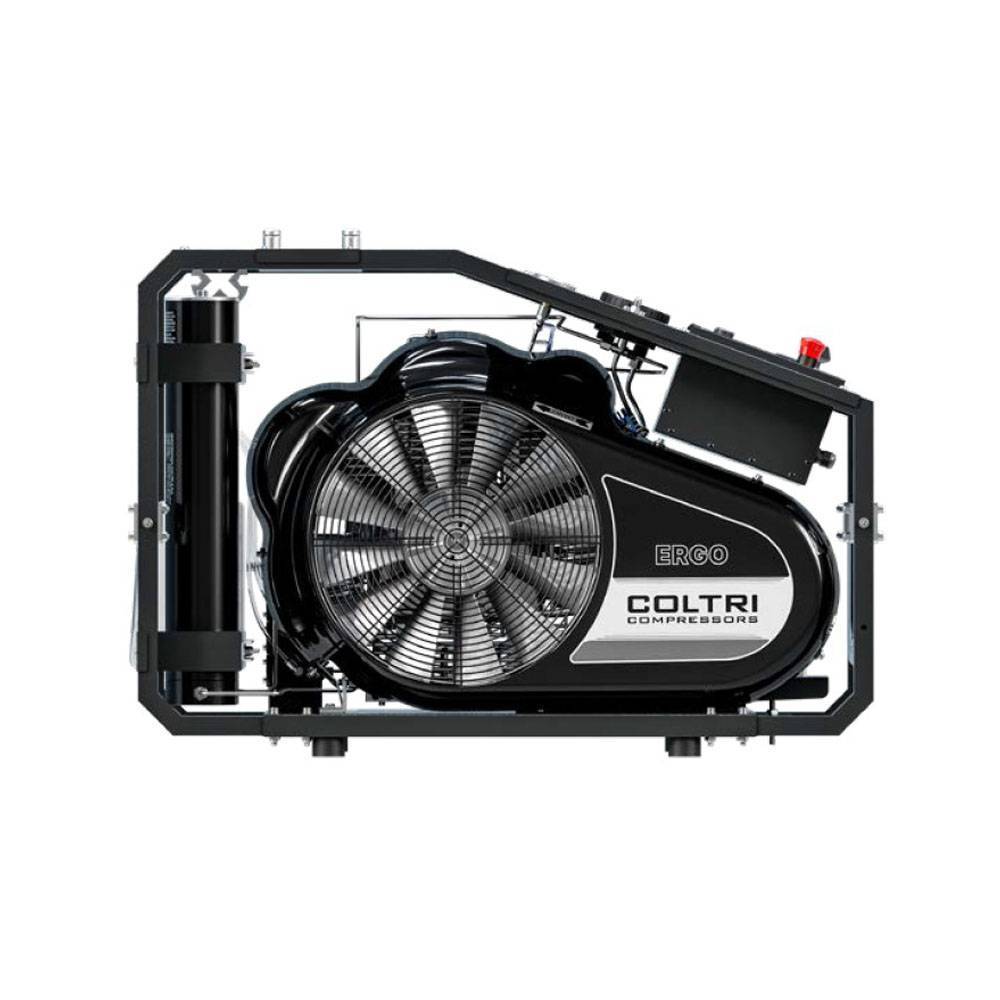

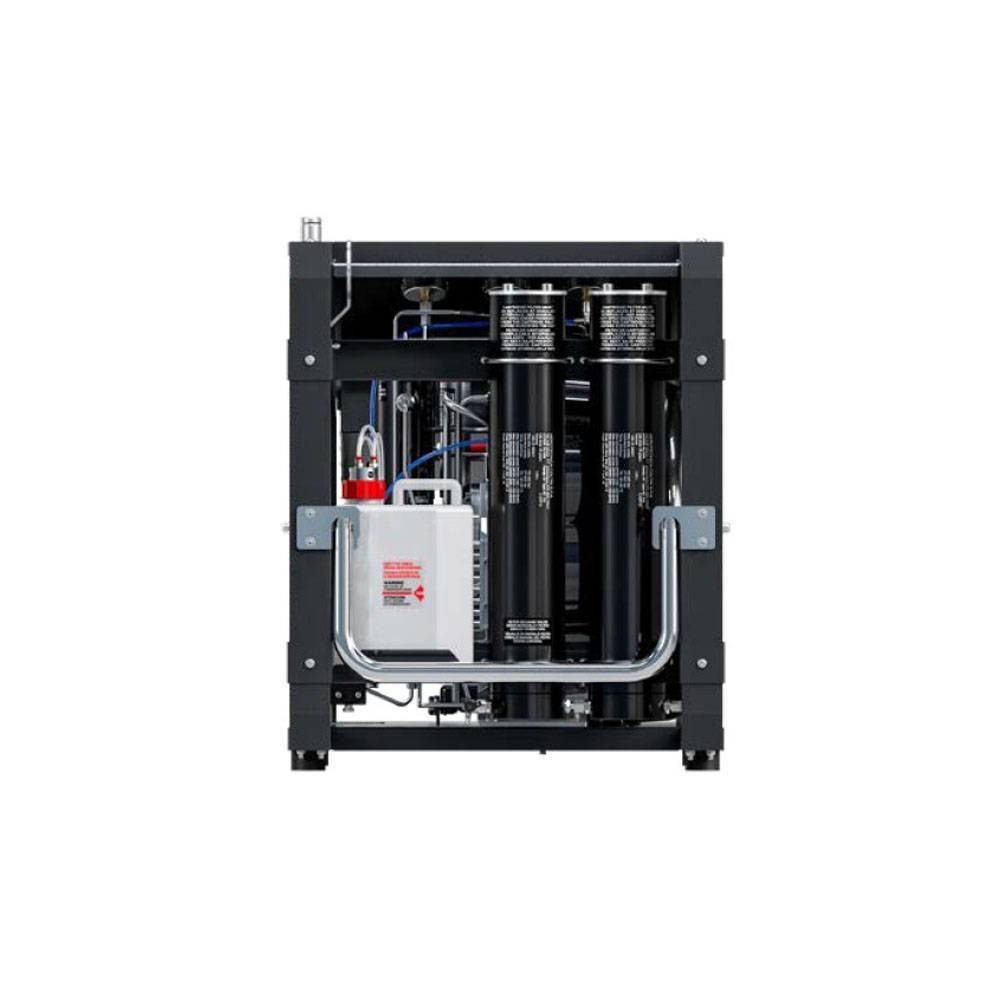

COLTRI Ergo 315 ET Compressor: Mobile Performance and Purified Air

The COLTRI Ergo 315 ET is a high-pressure compressor designed for mobile and efficient use. It combines robustness, performance, and ease of use, while ensuring superior quality breathable air.

Key Features:

• Mobile and Robust: Compact design and open frame for easy transport and simplified maintenance.
• Purified Air: Maxifilter filtration system for air compliant with DIN EN 12021 standards.
• High Performance: 3-stage pumping unit, automatic condensate drain, and rotation direction control.
• Ease of Use: Control panel with inter-stage pressure gauges, automatic shutdown, and unloaded start.
• Safety: Oil level and phase sequence alarms, safety valves at each stage.

Technology and Equipment:

• 3-stage pumping unit in aluminum and steel.
• Splash lubrication and inter-stage cooling.
• Maxifilter filtration system with moisture separators.
• Electrical panel with pressure switch, purge timer, and pressure gauges.
• Condensate recovery tank with silencer.

Usage:

The COLTRI Ergo 315 ET is ideal for:

• Filling diving cylinders.
• Applications requiring a mobile and high-performance compressor.
• Environments where air quality is paramount.

Standard Equipment:

• 2 cylinder connections (DIN 232, DIN 300, or INT/YOKE 232 bar).
• 2 flexible hoses, 1.2 m long.
• Pressure maintaining valve.
• Maxifilter filtration system.
• Integrated controls and alarms (temperature, oil level, rotation direction).
• Automatic condensate drain.

The COLTRI Ergo 315 ET is an excellent choice for those seeking a portable, reliable, and high-performance compressor capable of providing quality air in any situation.
