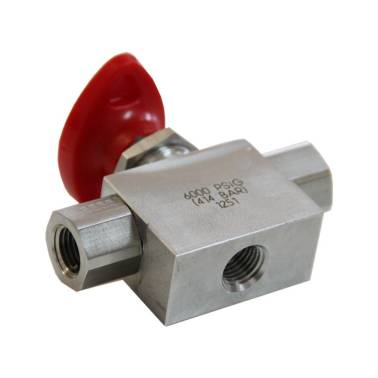

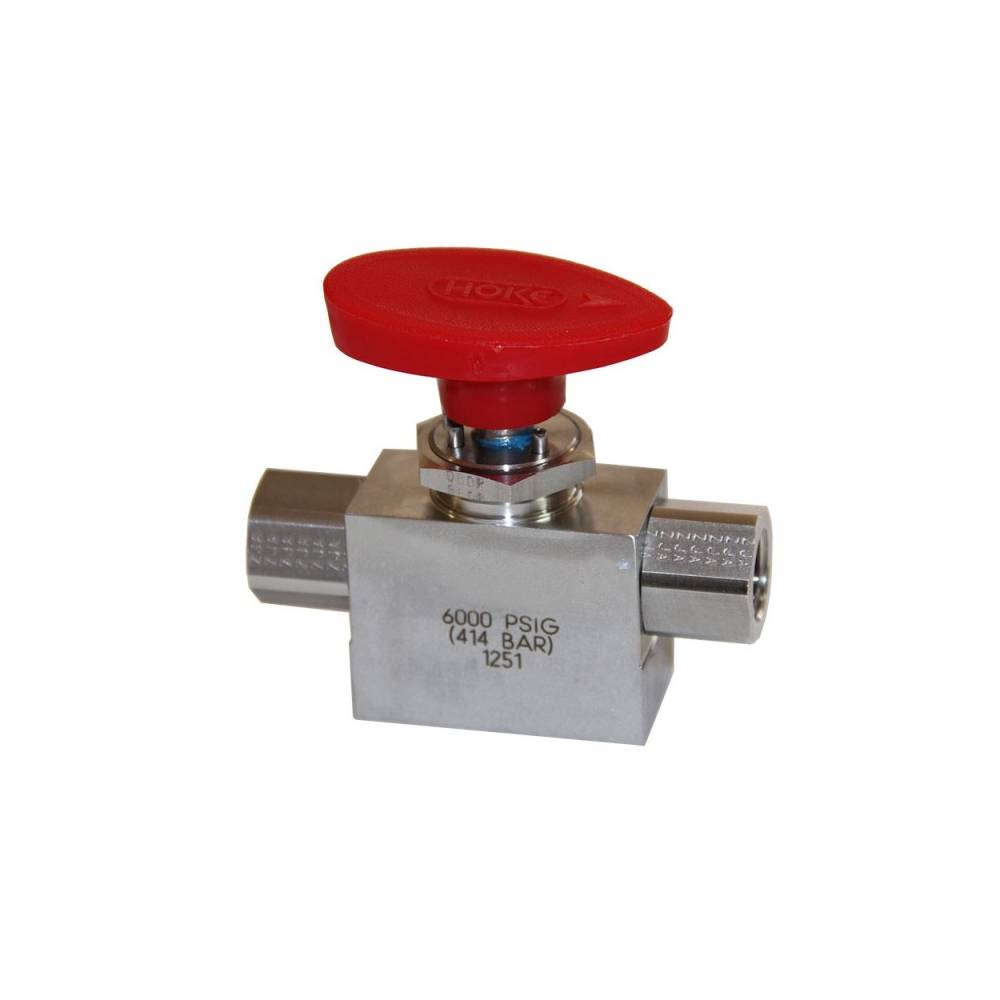

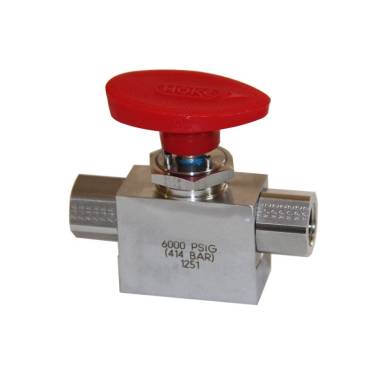

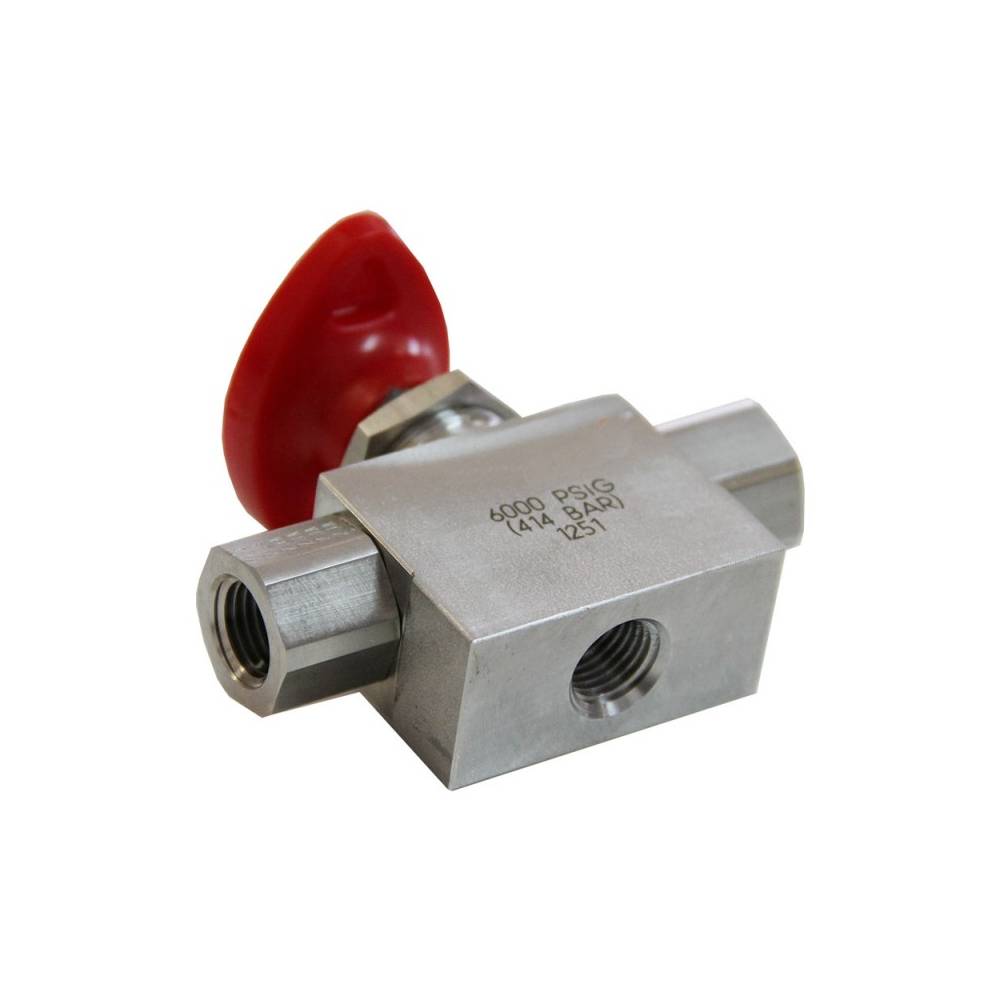

H.P 316L stainless steel 3-way 1/4 turn valve 414 bar

H.P 316L Stainless Steel 3-Way 1/4 Turn Valve 414 Bar

3-way ball valve for industrial applications, compatible with air and 40% nitrox. Allows flow diversion.

Features & Advantages:

• Visual indication of flow direction: Handle indicating the position (open/closed, 180° rotation). Closed in perpendicular position.
• Tight seal, bi-directional: Encapsulated TFE seats and polished ball ensure optimal sealing in both directions.
• Elimination of fugitive emissions: Packing ensures perfect sealing under vacuum or high pressure, low operating torque.
• Long service life: Floating ball uses pressure to ensure sealing, compensating for wear and temperature effects.
• Panel mounting possible.

Technical Specifications:

• Working Pressure: 414 bar (6000 psi)
• Connection: 1/4" NPT female (inlet/outlet)
• Materials: 316L stainless steel body, PTFE seats, Nylatron packing, Viton seals
• Bore diameter: 4.75 mm
• CV: 0.56
• Compatibility: Air and 40% nitrox
• Operating Temperature: -18°C to +177°C
• Dimensions: Total length (with handle) 68 mm, body length 75 mm, width 22 mm, stuffing box diameter 22.6 mm
• Weight: 325 grams

Caution: "Hydraulic" valves (300-500 bar) are not suitable for high-pressure compressed air due to oxidation and grease drying.
