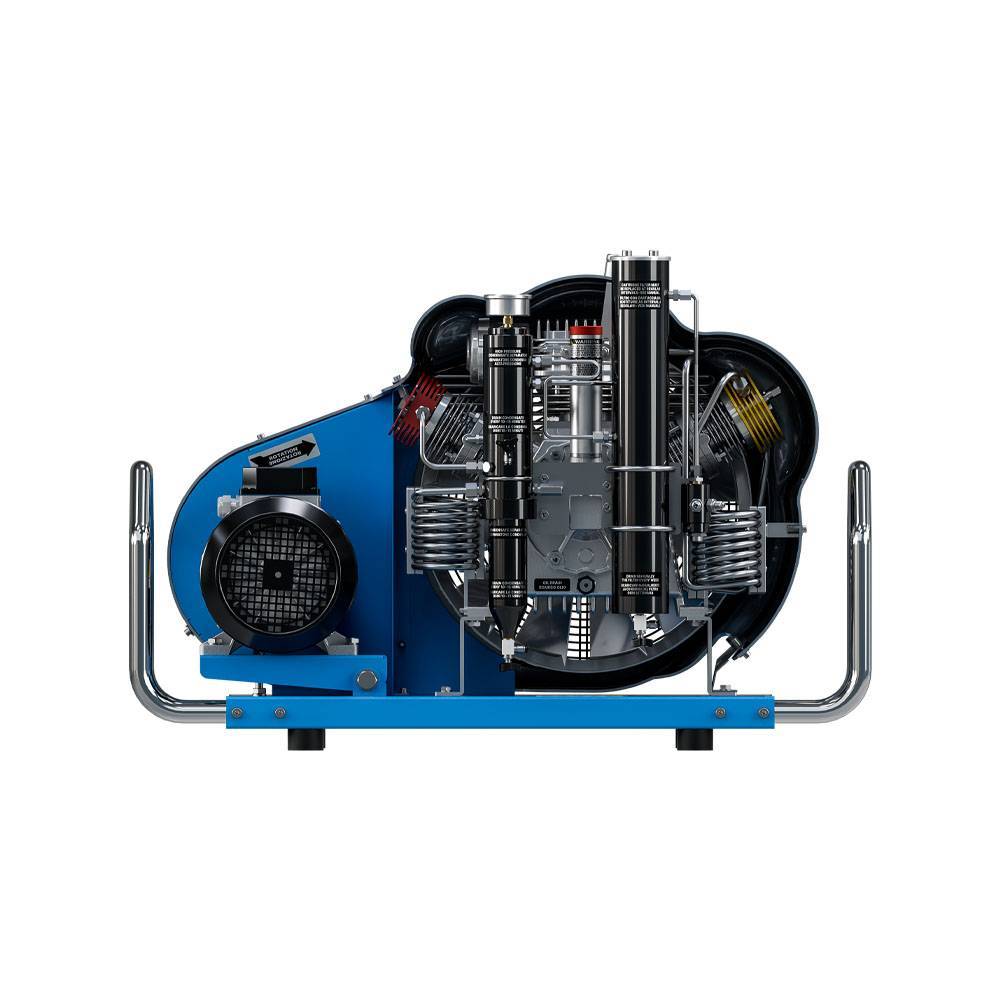

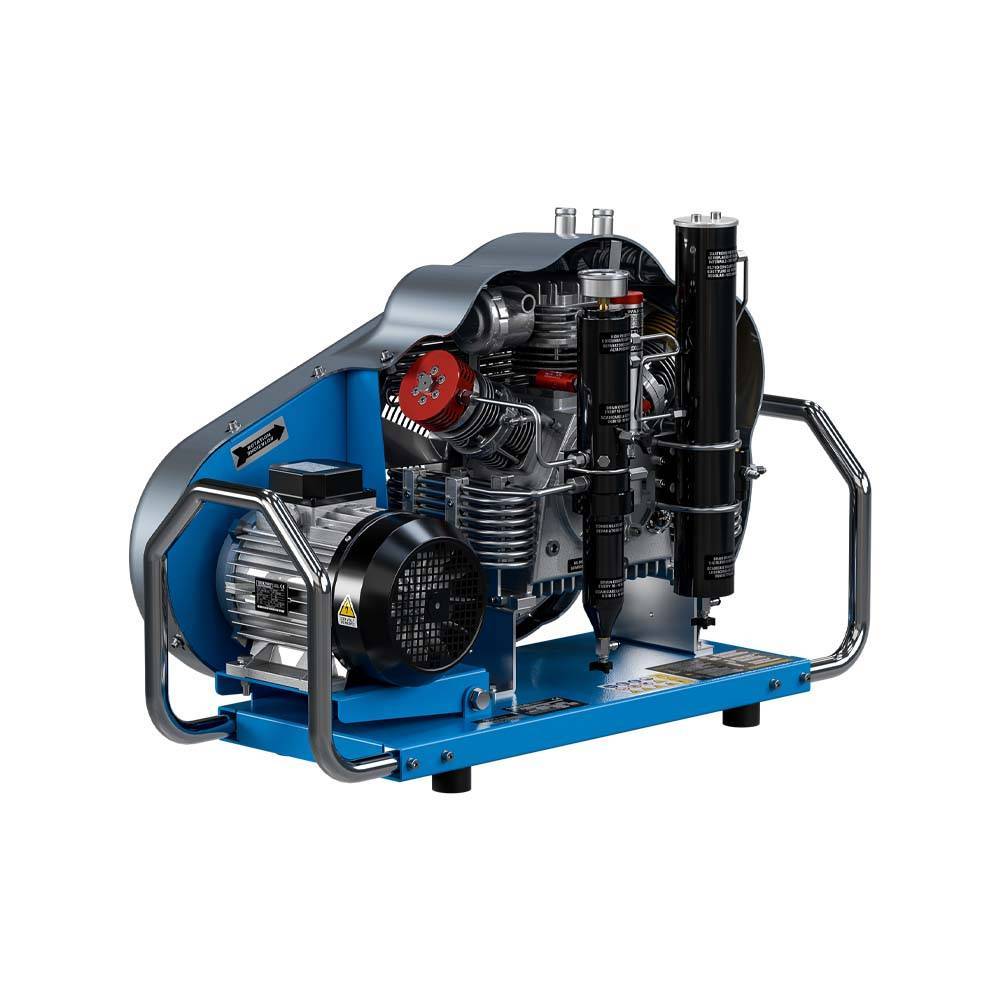

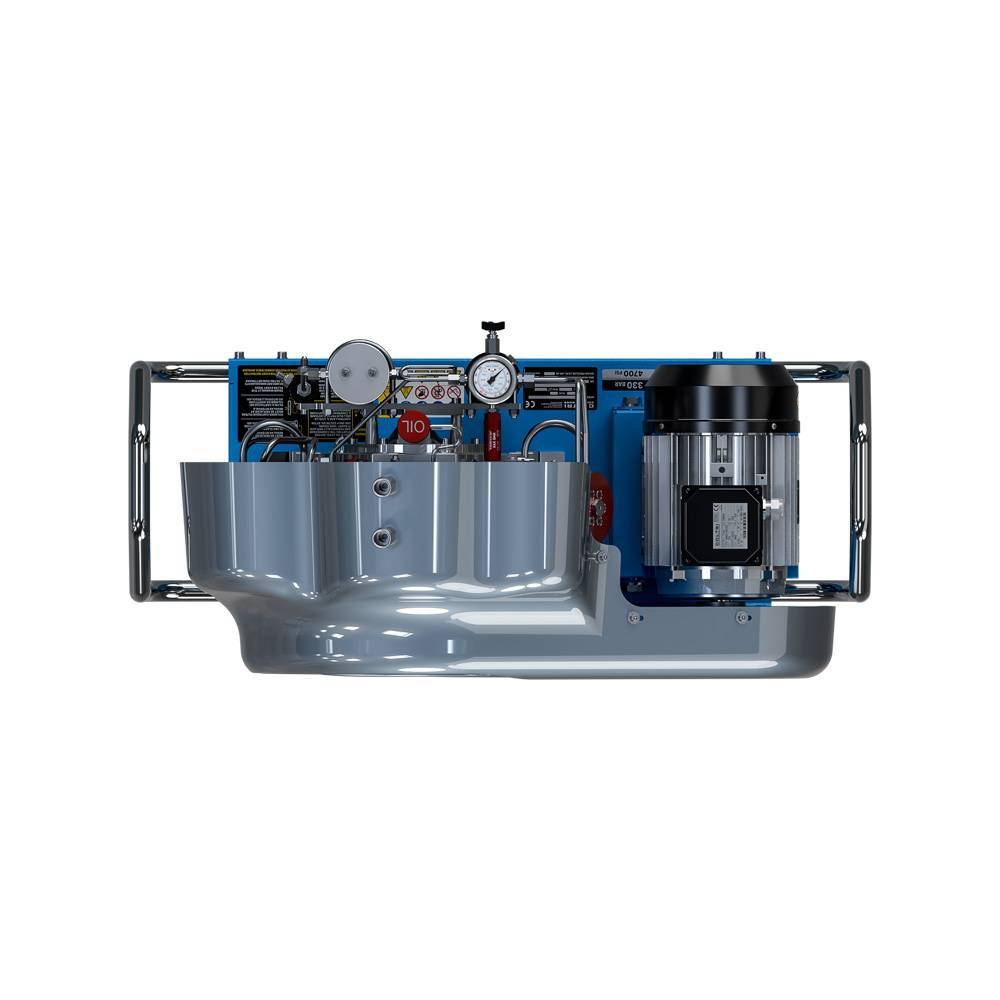

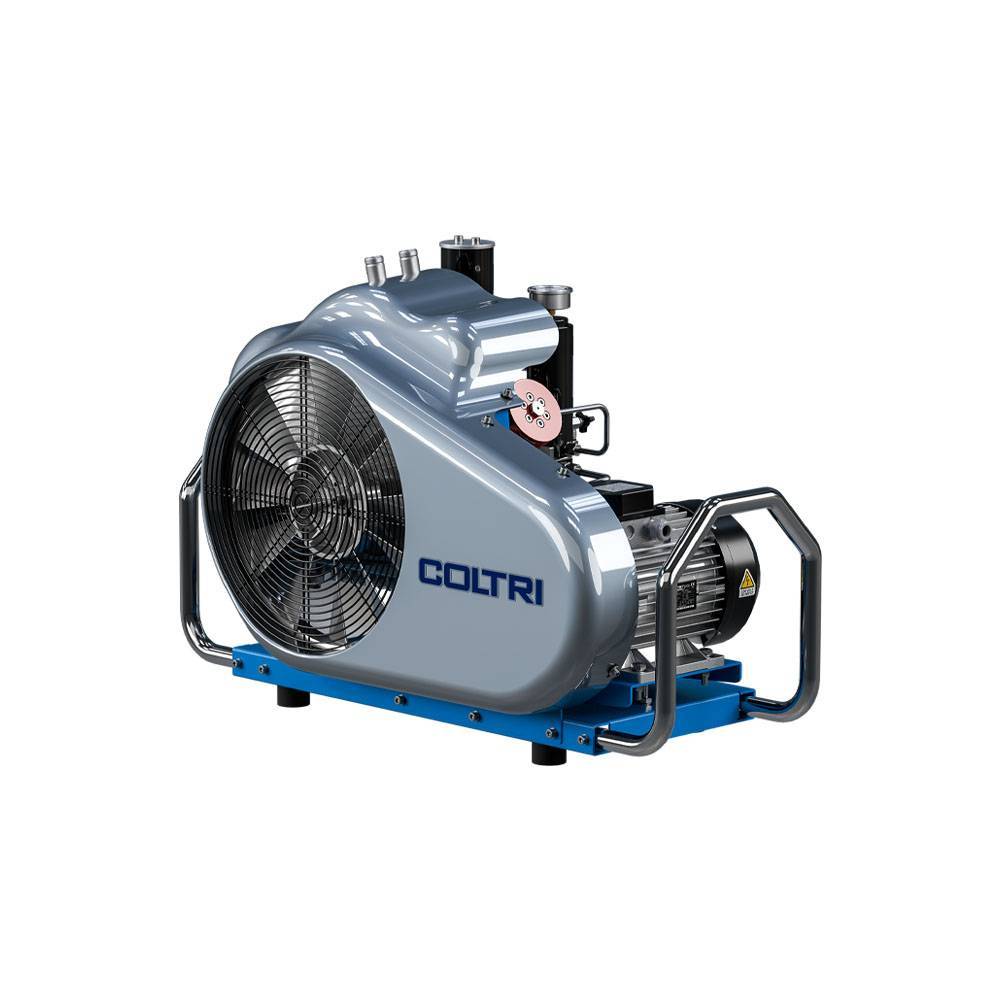

High pressure compressor COLTRI Smart 315 ET
COLTRI SMART 315 ET Compressor: 315 L/min, 232-330 bar, 5.5 kW three-phase motor, portable compact chassis, MAXIFILTER filtration compliant with EN 12021:2014.
COLTRI SMART 315 ET Compressor – Performance and Reliability for Breathing Air
The COLTRI SMART 315 ET compressor is a global reference, renowned for its robustness and efficiency. Equipped with two front filling outlets, a 5.5 kW three-phase electric motor, and a proven MCH16 compression block, it offers a flow rate of 315 L/min, ideal for diving centers, rescue services, and industrial applications.
Main Features:
- Flow rate: 315 L/min (19.9 m³/h)
- Operating pressure: 232 to 330 bars
- Dimensions: 100 x 46 x 70 cm
- Weight: 105 kg
Robust and Portable Design
Its compact frame with integrated handles facilitates transport, while the epoxy resin paint ensures optimal protection against harsh environments.
High-Quality Filtration
The MAXIFILTER filtration system guarantees air quality compliant with the EN 12021:2014 standard, ensuring pure and breathable air for all your applications.
Available Options
For added convenience, the compressor can be optionally equipped with automatic drains and automatic shutdown, optimizing its use and maintenance.
The COLTRI SMART 315 ET is the ideal solution for those seeking a high-performance, reliable, and easy-to-transport compressor, suitable for a wide range of applications requiring high-quality breathable air.
Data sheet
- Model
- SMART 315 ET
- Mobility
- Portable
- Operating Pressure
- 232 BAR
300 BAR
330 BAR - Type of gas
- Breathing air EN 12021, Nitrox (max. 40% O2), Helium, Nitrogen
- Motor type
- Three-phase electric
- Charging rate
- 315 l/min
- Cooling air flow
- 2 180 m³/h
- Power
- 5.5 kW
- Operating voltage
- 400 V - 50 Hz
- Rated current
- 20 A
- Speed
- 2.840 rpm
- Permissible ambient temperature range
- - 10° C / + 40° C
- Oil
- Synthetic oil COLTRI ST 755
- Oil change interval
- 1 year / 1 000 h
- Filtration
- Maxifilter
- Frame
- Painted steel
- Height
- 70 cm
- Width
- 100 cm
- Depth
- 46 cm
- Weight
- 105 kg
