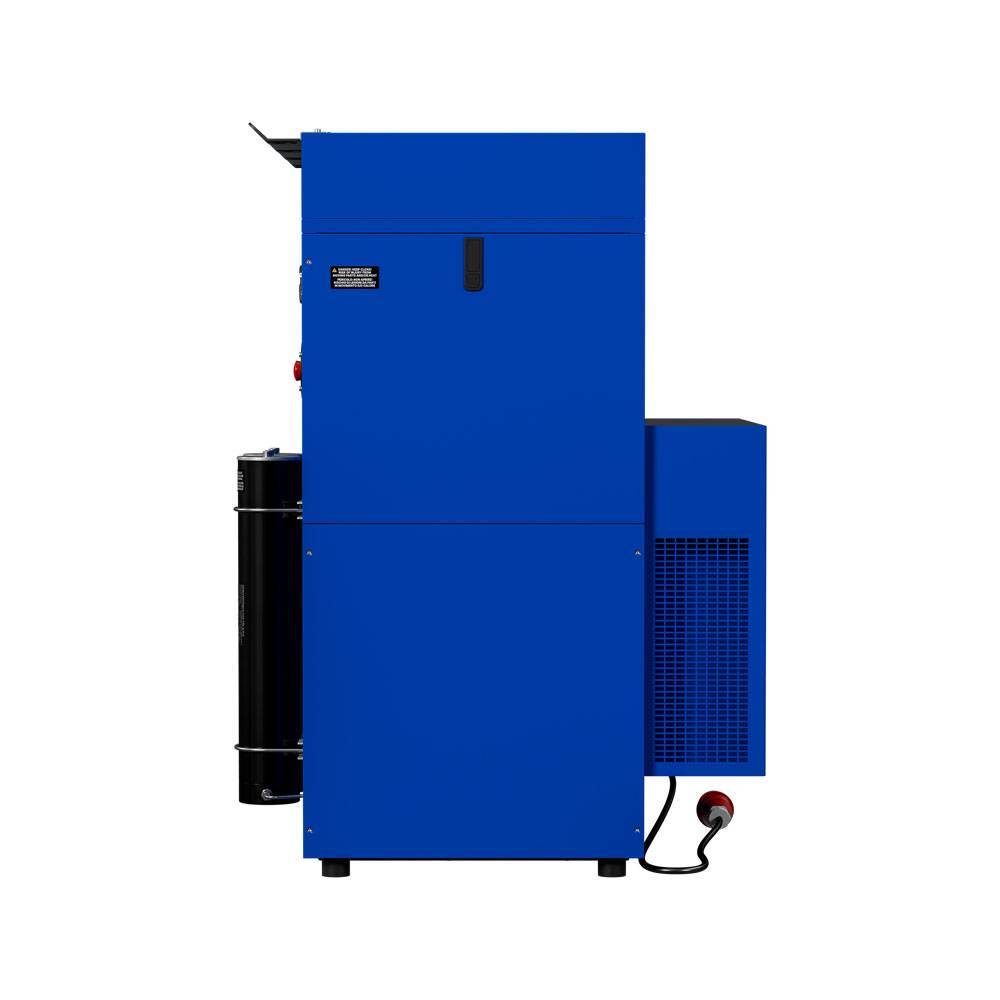

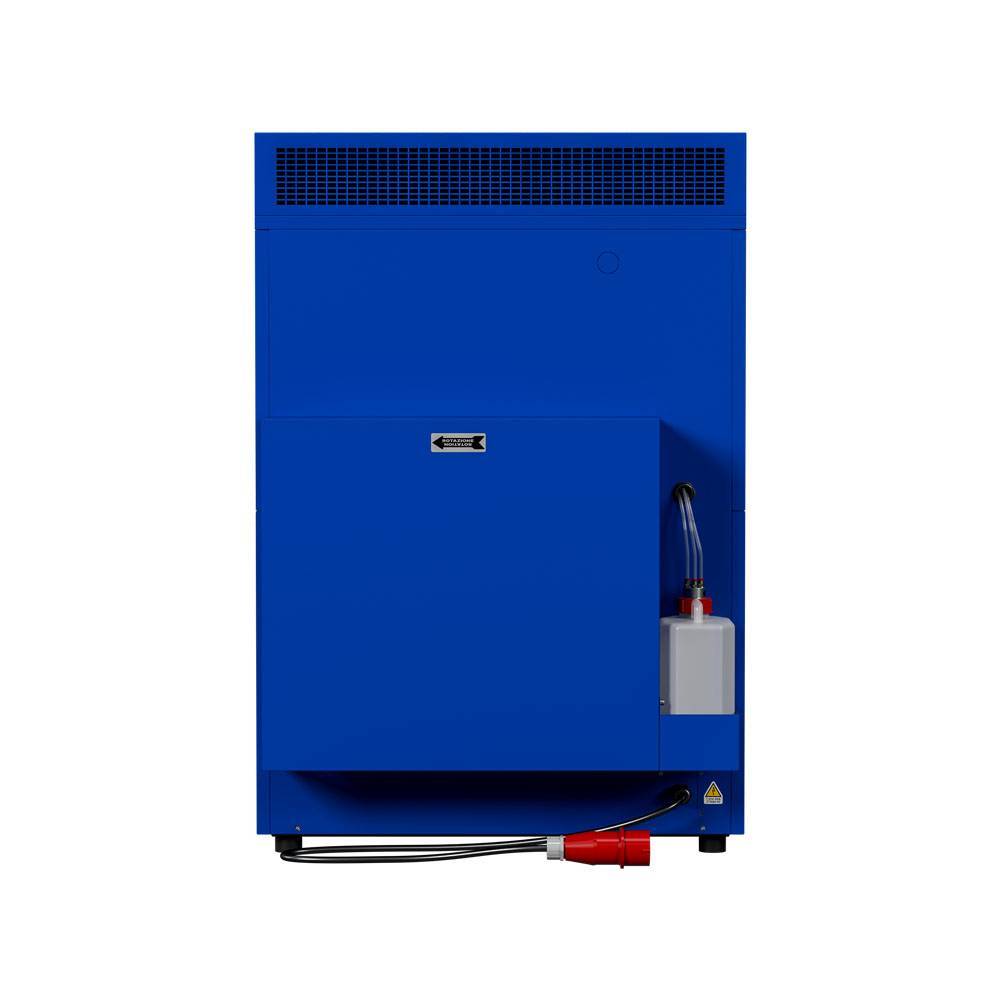

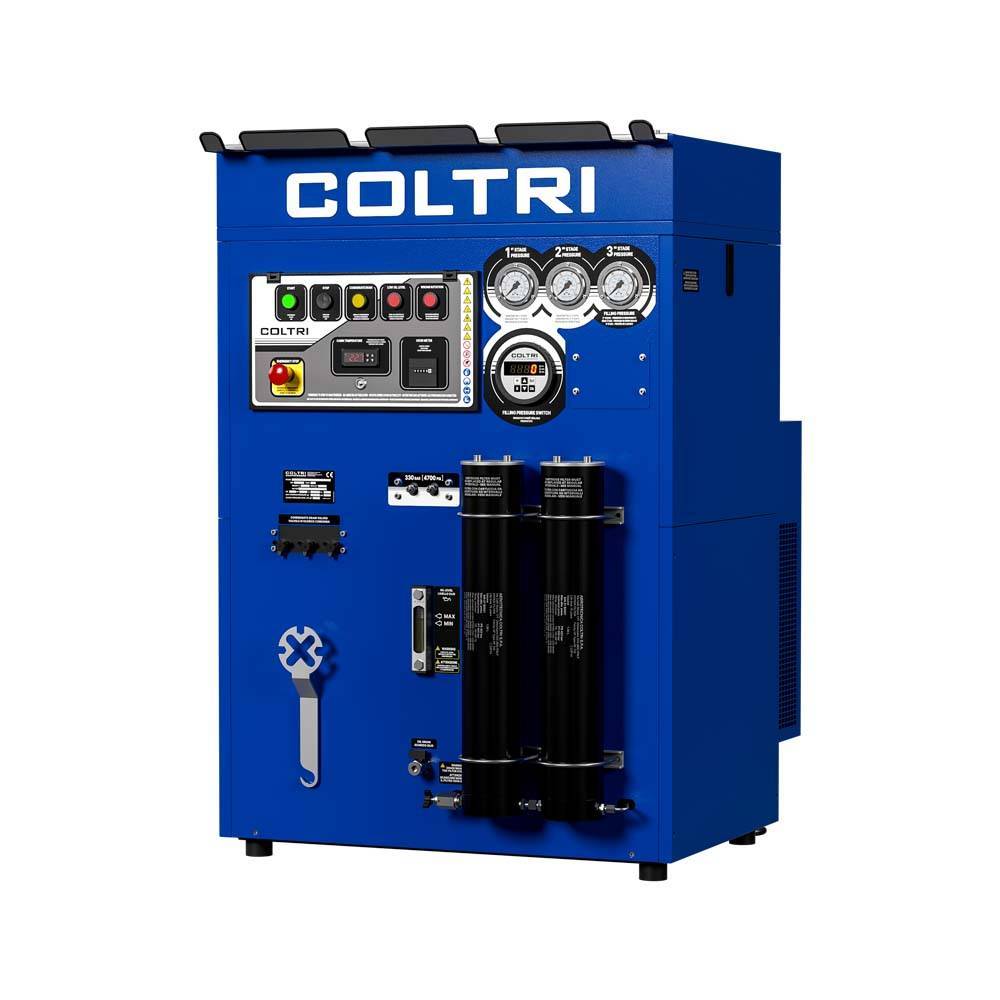

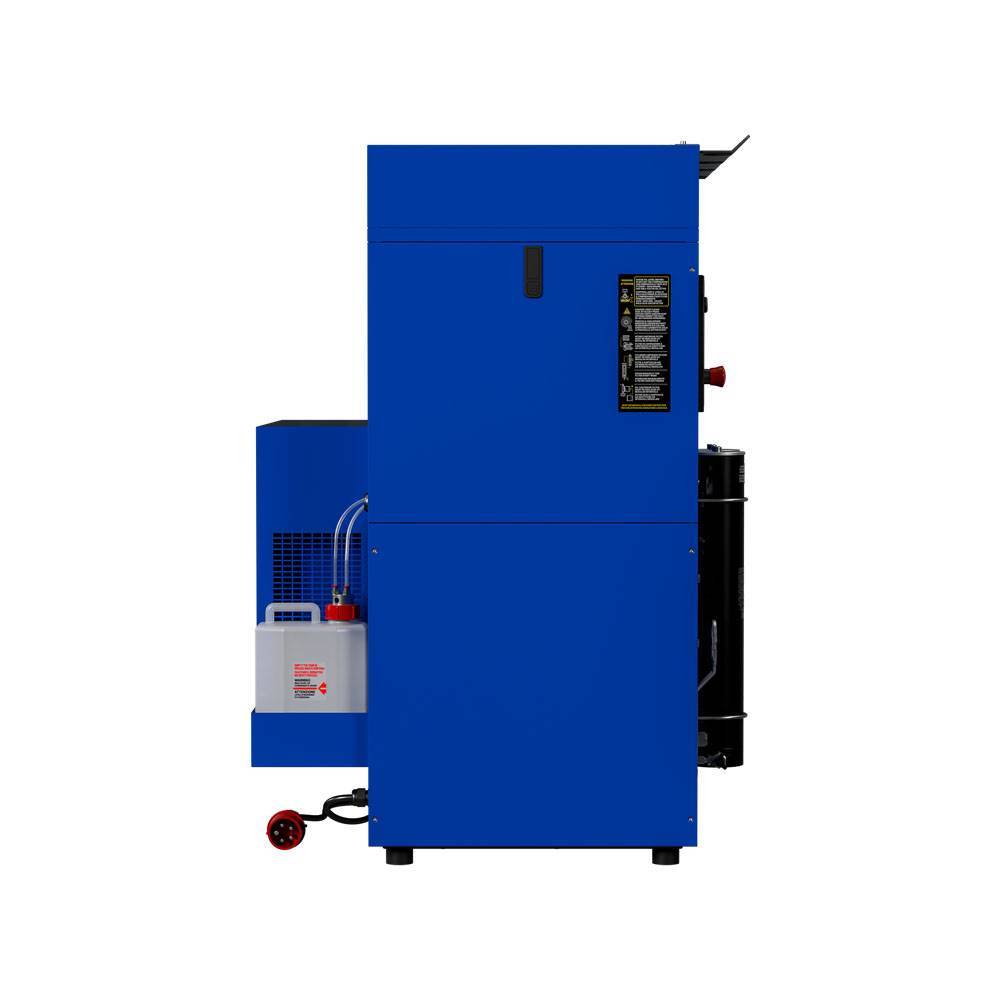

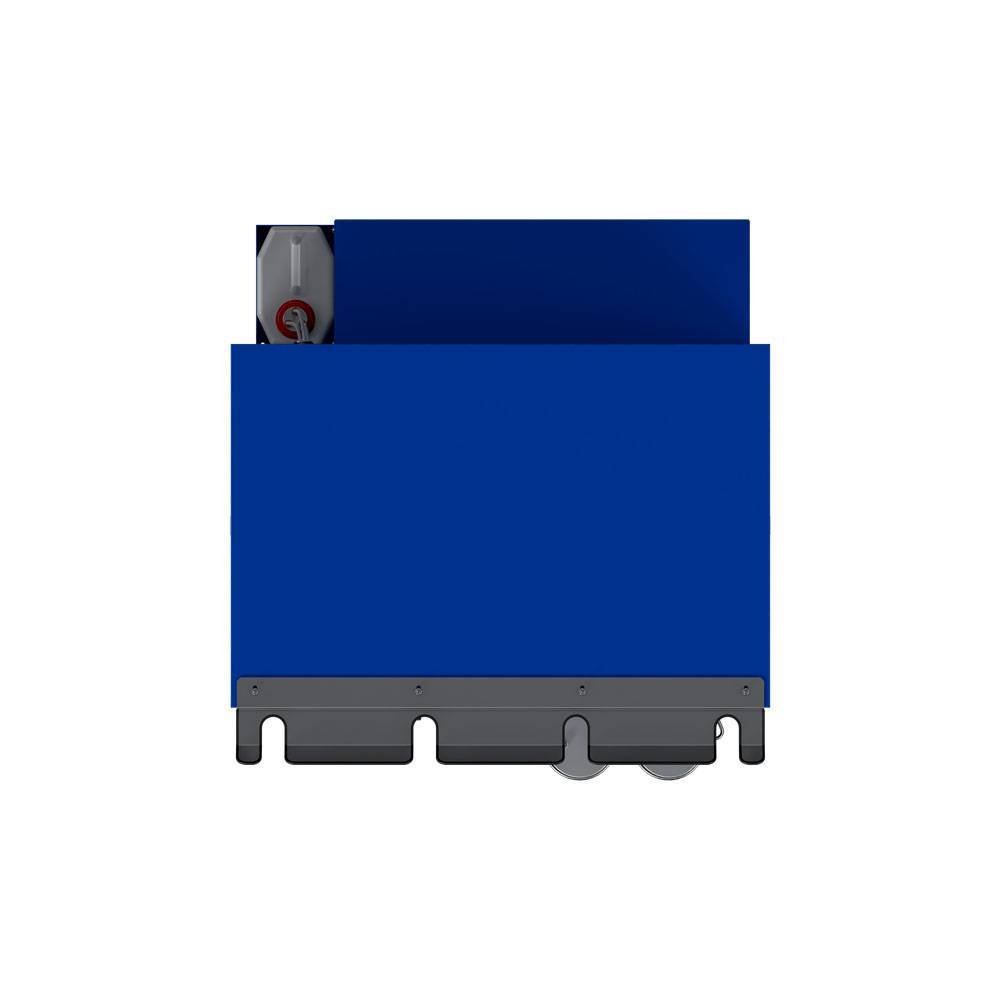

High pressure compressor COLTRI Super Silent TPS 235 ET
COLTRI Super Silent TPS 235 ET: Silence and performance. Pure air, ideal for noise-sensitive environments and demanding applications.
COLTRI Super Silent TPS 235 ET Compressor: Absolute Silence and Ultra-Purified Air
The COLTRI Super Silent TPS 235 ET is a high-performance breathing air compressor designed for silent operation. It combines reinforced acoustic insulation, exceptional performance, and unmatched air purification.
Key Features:
- Absolute Silence: Optimized design for minimal noise levels thanks to reinforced acoustic insulation.
- Ultra-Purified Air: Dual Hyperfilter filtration system for air compliant with DIN EN 12021 standards.
- TPS Performance: Tropical Plus Superdry pumping unit for increased reliability and performance.
- Intuitive Control: Control panel with pressure gauges, electronic autostop, and automatic purge.
- Reliability and Durability: Reinforced components and optimized cooling for a long lifespan.
Technology and Equipment:

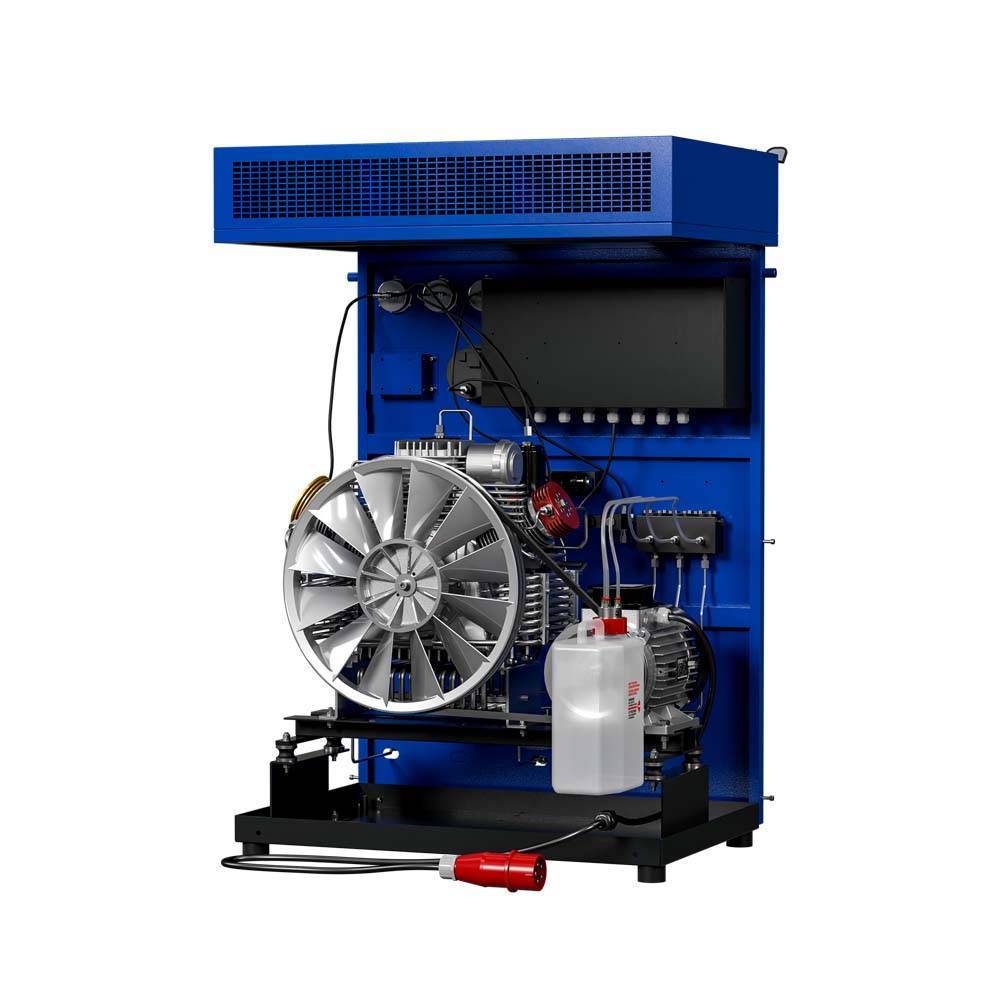

- TPS pumping unit with reinforced components and forced lubrication.
- Dual Hyperfilter filtration system with moisture separators for maximum purification.
- Electrical panel with electronic pressure switch, purge timer, and inter-stage pressure gauges.
- Condensate recovery tank with silencer and dual final separator.
- Reinforced cooling and acoustic insulation system.
Usage:
The COLTRI Super Silent TPS 235 ET is ideal for:
- Noise-sensitive environments requiring a high-performance compressor.
- Demanding industrial and professional applications.
- Situations requiring impeccable air quality and silent operation.
Standard Equipment:
- 2 bottle connections of your choice (DIN 232, DIN 300, or INT/YOKE 232 bar).
- 2 flexible hoses, 1.2 m long.
- Pressure maintenance valve.
- Dual PED certified Hyperfilter filtration system.
- Inter-stage control pressure gauges.
- Integrated controls and alarms (temperature, oil level, rotation direction).
- Automatic condensate purge.
The COLTRI Super Silent TPS 235 ET is the perfect choice for those seeking a silent, high-performance compressor capable of providing ultra-purified air in any situation, even in the most noise-sensitive environments.
Data sheet
- Model
- SUPER SILENT TPS 235 ET
- Mobility
- Stationary
- Operating Pressure
- 232 BAR
300 BAR
330 BAR
420 BAR - Type of gas
- Breathing air EN 12021, Nitrox (max. 40% O2), Helium, Nitrogen
- Motor type
- Three-phase electric
- Charging rate
- 235 l/min
- Cooling air flow
- 1 960 m³/h
- Power
- 4 kW
- Operating voltage
- 400 V - 50 Hz
- Rated current
- 16.8 A
- Speed
- 2.840 rpm
- Permissible ambient temperature range
- - 10° C / + 40° C
- Oil
- Synthetic oil COLTRI ST 755
- Oil change interval
- 1 year / 1 000 h
- Filtration
- Hyperfilter
- Frame
- Painted steel
- Noise
- 63 dB
- Height
- 132 cm
- Width
- 90 cm
- Depth
- 93 cm
- Weight
- 212 kg
