Filling ramp 4 outlet double pressure COLTRI

Filling ramp 4 outlet double pressure COLTRI

Description

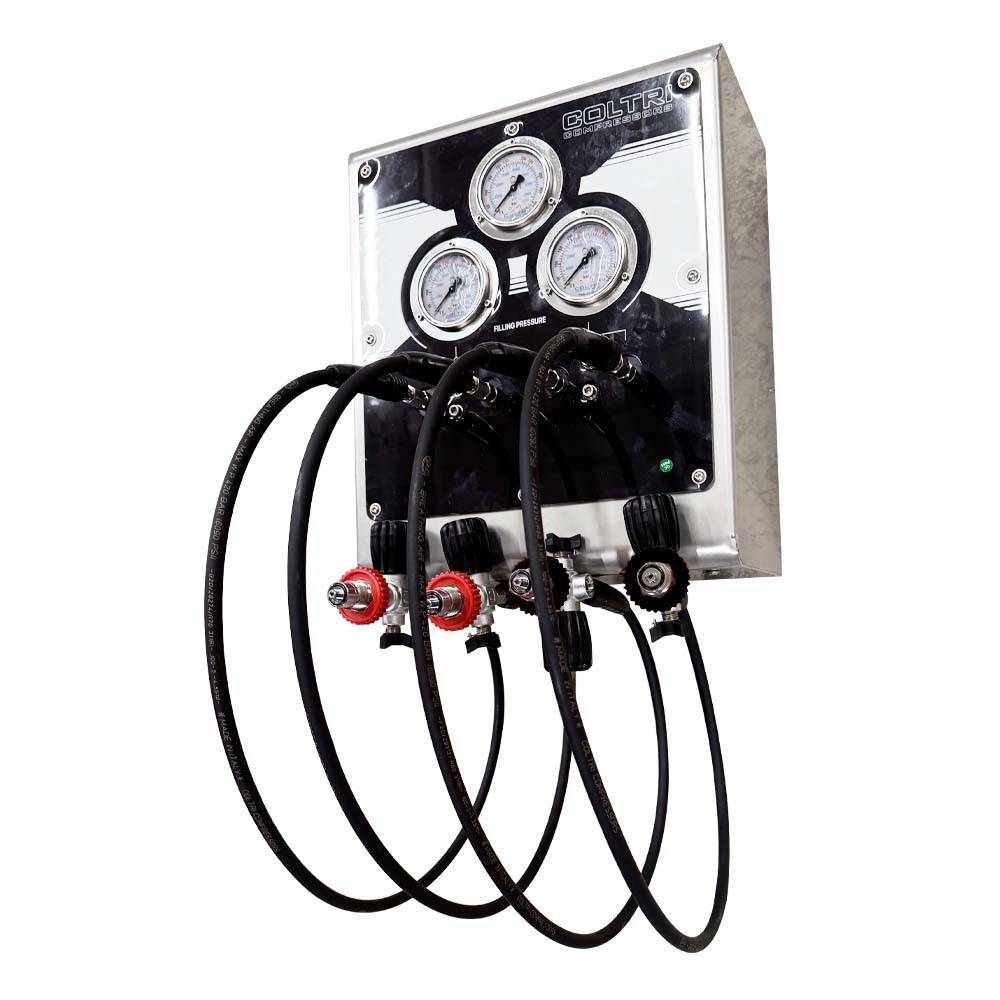

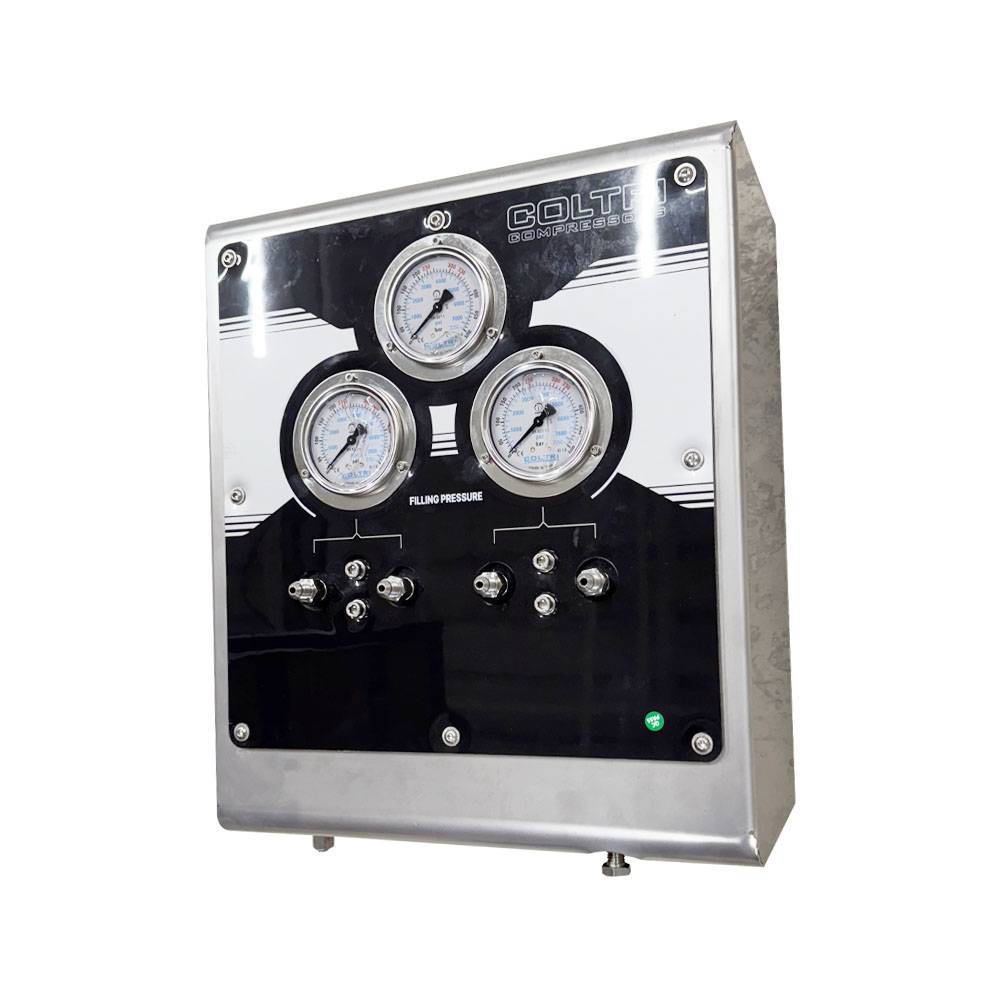

This COLTRI 4-outlet filling ramp is great for filling diving cylinders and self-contained breathing apparatus (SCBA) cylinders. It has a special part that controls the pressure for 2 of its 4 outlets, so you can have two different pressures at the same time!

How it works

• The outlets :

  • 2 outlets that have the same pressure as the air that comes in (from the compressor or big tanks)

  • 2 outlets where the pressure is adjusted by a "regulator" (you can choose between 140 and 300 bar) and that have extra safety

• It has a pressure indicator with glycerin inside so the needle doesn't move around too much.

• You can choose how you want the pressures on the 4 outlets: 300 and 230 bar, 300 and 200 bar, 230 and 200 bar, 200 and 176 bar. Other configurations are possible upon request.

What's in the box

• The parts :

  • A strong frame made of metal that doesn't rust (stainless steel)

  • A "regulator" that can be adjusted and locked for the 2 outlets where the pressure changes

  • A safety feature so the pressure doesn't get too high on the 2 adjusted outlets

  • An indicator to see the pressure that comes in

  • An indicator to see the pressure that goes out of the "regulator"

  • 4 Coltri hoses that are 1 meter 20 long

  • 4 valves to open, close, and let air out (of different types)

How to install it

To connect the air, it's a Coltri fitting, but there are others if you want. It's easy to put on the wall with 4 screws (not included). You can connect it to the compressor or big tanks with a normal hose or a metal pipe (ask us for a quote).

If you want more

• Possible options :

  • Super safe hoses with a cable inside so they don't whip around if they break

  • A part to connect different types of cylinders

  • You can add more outlets if you need them (up to 16!)

Important to know

Attention : The 2 outlets where the pressure doesn't change don't have extra safety. You need to connect this ramp to an air source that already has its own safety and where the pressure isn't higher than that of the cylinders you want to fill. For other uses, please ask us to meet your needs!
