Filling ramp 4 outlet single pressure COLTRI

Filling ramp 4 outlet single pressure COLTRI

Description

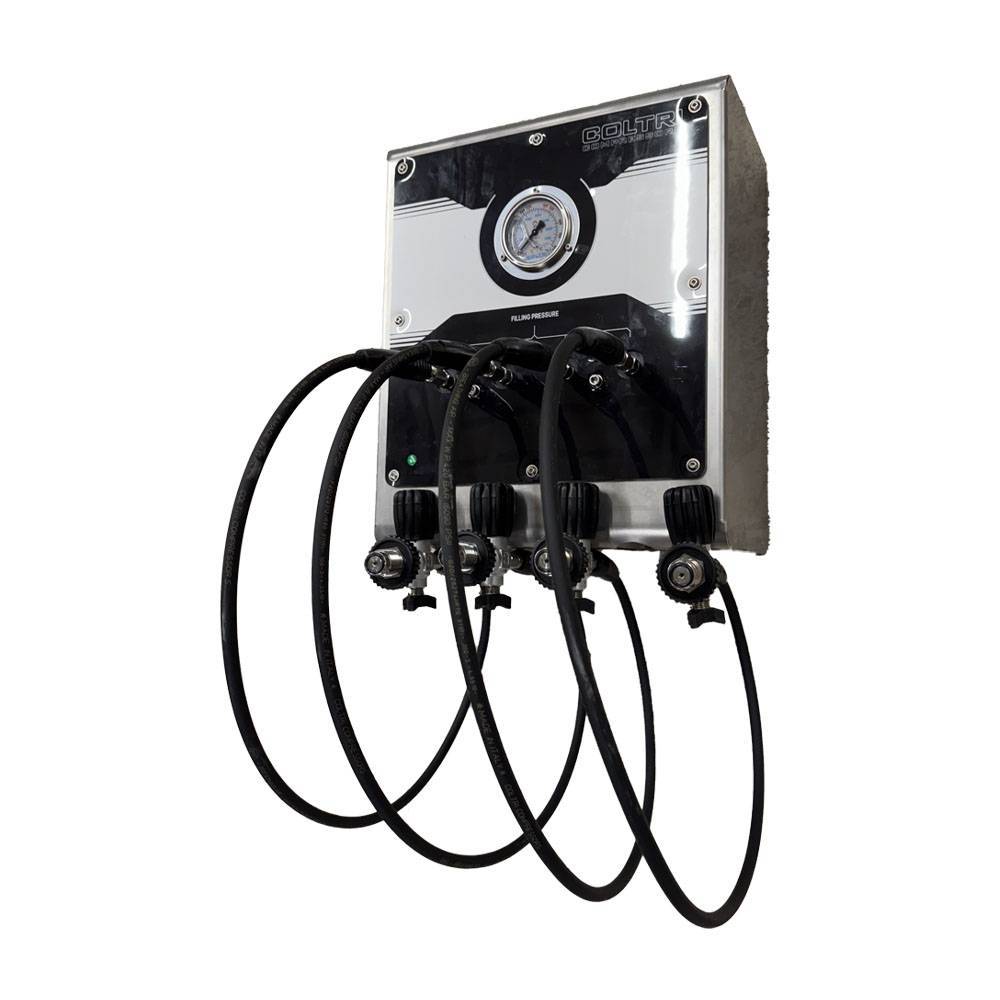

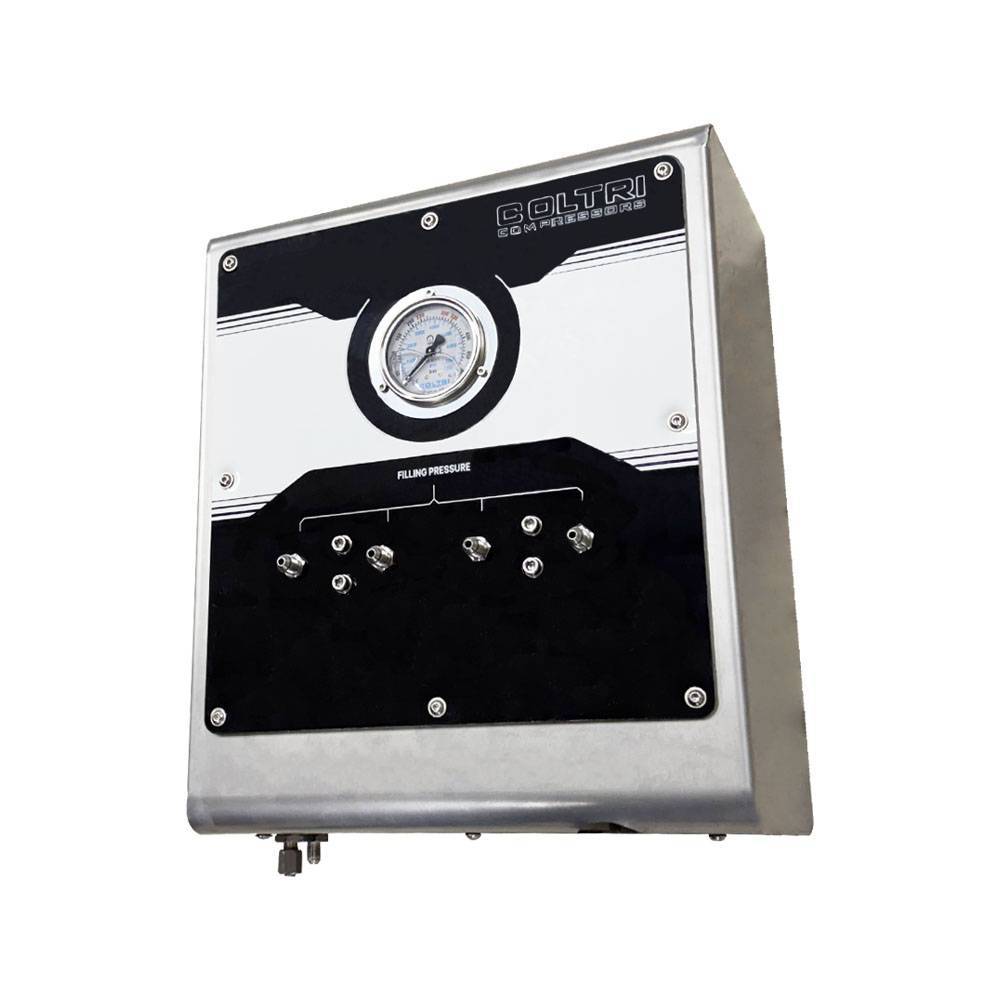

The COLTRI 4-outlet filling ramp is ideal for filling diving cylinders and self-contained breathing apparatus (SCBA) cylinders. It comes in two pressure types: 230 and 300 bar.

What's included

• Included parts:

  • A strong frame made of stainless steel

  • A pressure reader filled with oil so the needle stays steady

  • Four 1.2-meter Coltri hoses

  • Four separate valves to turn on and off and let air out (you can get them in DIN 200-232 or DIN 300 bar)

How to set up and connect

The part where air goes in is a Coltri type, but you can ask for other types too (6S, 8S, 1/4).

It's easy to put on a wall. You can connect it to the air maker (compressor) or big air tanks with a flexible hose or a strong metal pipe (ask us how much that would cost).

Things you can add

• Options:

  • Hoses that are extra safe with a cable to stop them from whipping around

  • A TEK2G000 thingy to control the pressure with a safety valve for big air tanks that are 230 bar and higher

  • A part to connect different types of valves (yoke-DIN)

  • You can add more outlets if you need more than 4 (from 5 up to 16!)

Important thing to know

Important: This filling ramp doesn't come with a pressure controller or a safety valve. You need to connect it to something that makes air (like a compressor or a bunch of air tanks) that already has a safety valve and whose pressure isn't higher than the tanks you want to fill.

If you need it to do other things, we can get you pressure controllers, pressure readers, and safety valves. Just ask us for a price!
