Description

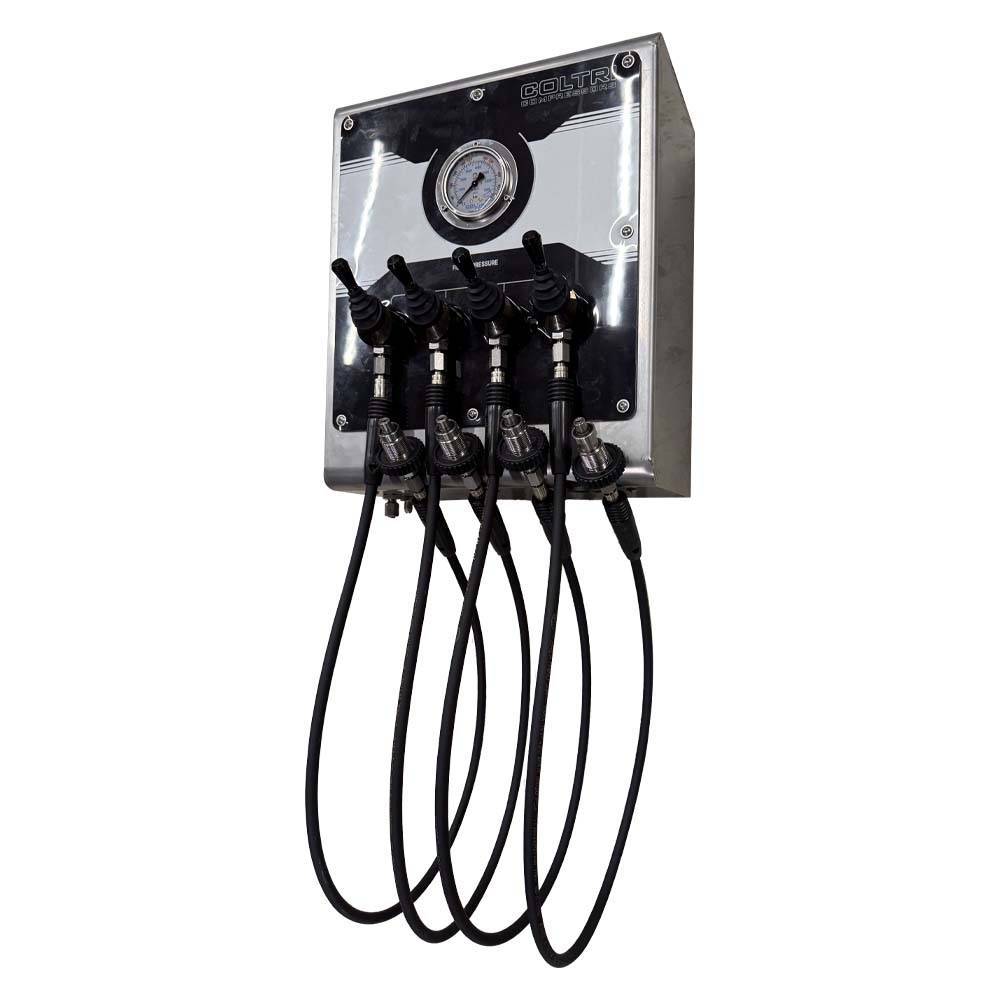

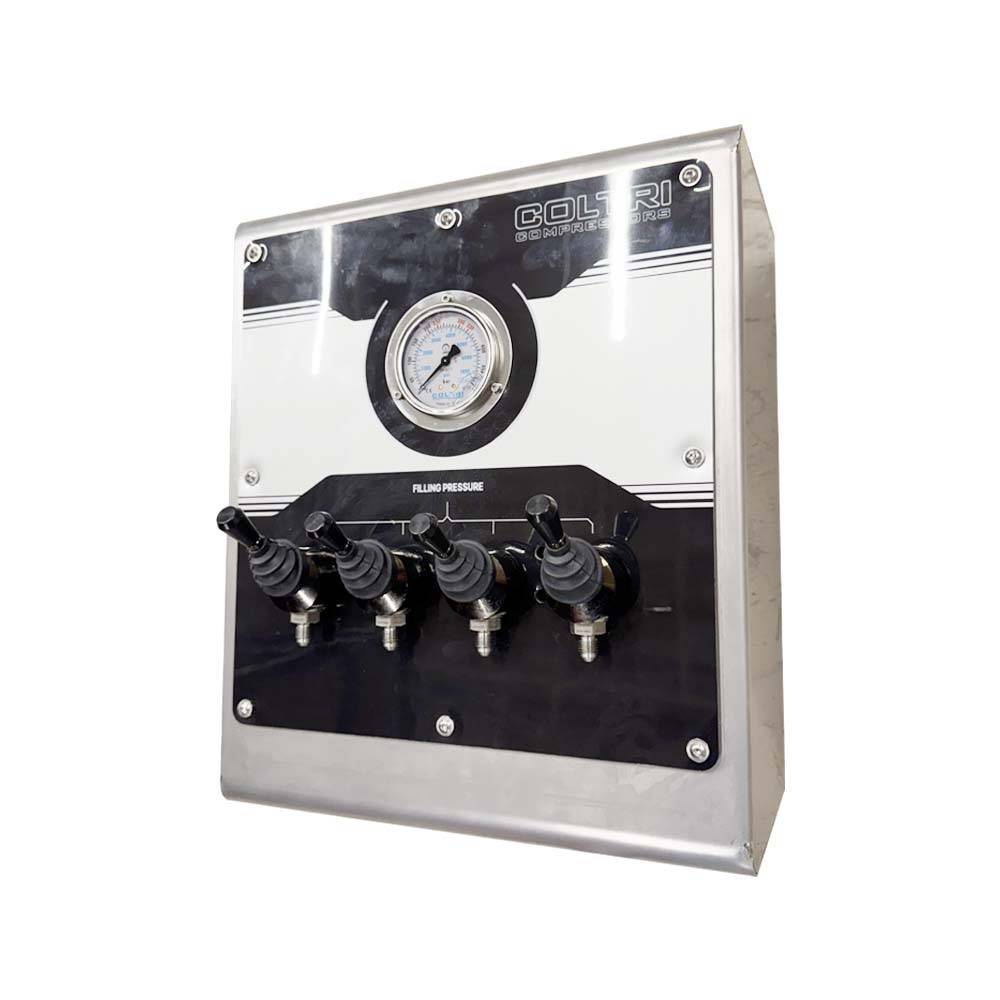

The COLTRI 4-outlet filling ramp is equipped with quick-purge joystick valves, making it practical for filling diving cylinders and SCBA cylinders. It is available in two pressure versions: 230 BAR and 300 BAR.

Scope of delivery

• Included elements:

  • A stainless steel frame

  • An oil-filled pressure gauge for stable pressure reading

  • Four 3-way quick-loading joystick valves (with integrated purge)

  • Four 1.2-meter Coltri hoses

  • Four anti-whipping safety check valve loading fittings (DIN 230 or DIN 300)

Installation and connection

The inlet connection is Coltri type, with other options available (6S, 8S, 1/4" female) upon request.

Easy installation via wall mounting. Connection to the compressor or tanks can be done via a flexible hose or stainless steel piping (contact us for a quotation).

Important note: This ramp is not compatible with DIN-Yoke adapters due to the anti-whipping check valve fittings. For cylinders with yoke-type valves, please refer to our models SC000325 or SC000329.

Available options

• Options:

  • Secure loading hoses with anti-whipping cable

Installation advice

It is best to avoid installing the ramp in an environment exposed to chloramines.

Important warning

Important: This filling ramp is delivered without a regulator or safety valve. It must be connected to a compressed air source (compressor or cylinder rack) already equipped with a safety valve and whose pressure does not exceed that of the cylinders to be filled.

For any other configuration, we can offer customized solutions including regulators, pressure gauges, and safety valves. Do not hesitate to contact us for a personalized quotation.
