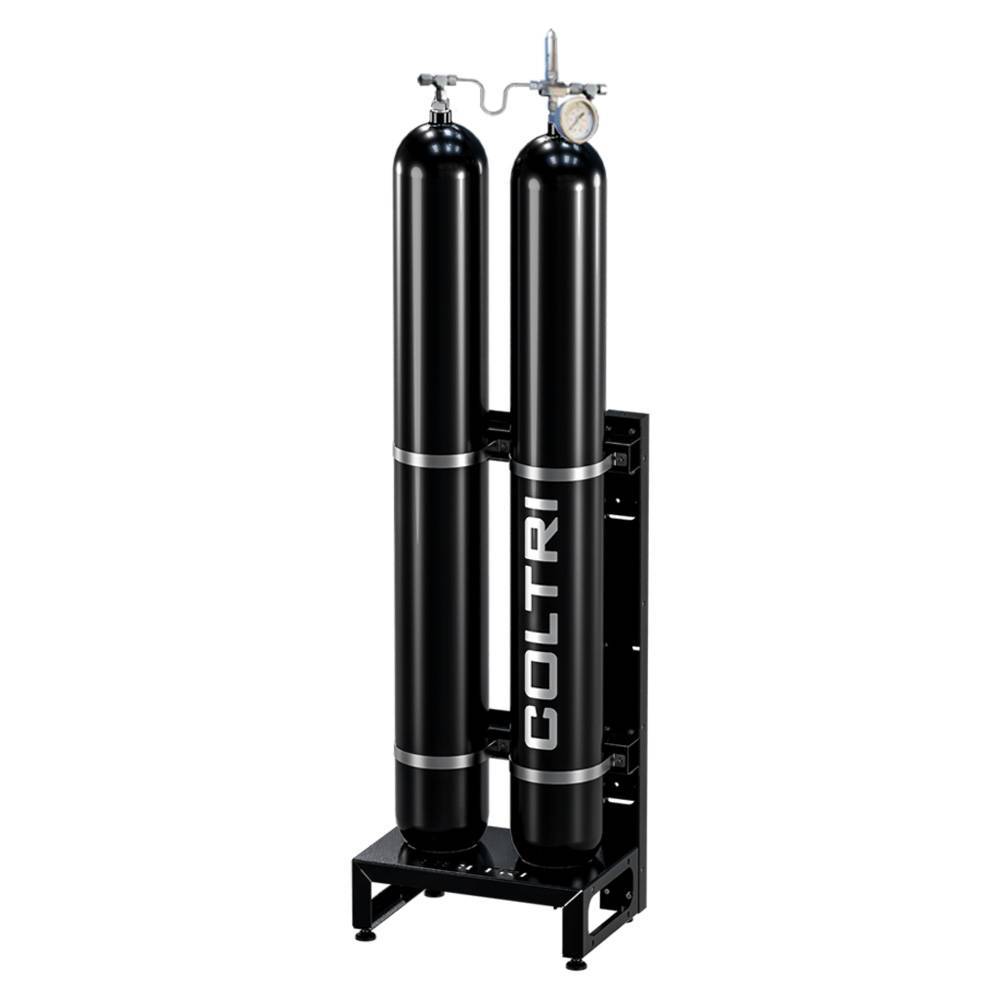

2 x 50L 360 bar COLTRI buffer cylinders rack

2 x 50L 360 bar COLTRI buffer cylinders rack

This rack includes two buffer cylinders for high-pressure air storage and redistribution. Each cylinder has a capacity of 50 liters and can withstand a pressure of 360 bar. The rack is designed to be placed along a wall.

Included equipment :

• Two 50-liter buffer cylinders, 360 bar, with 1/4" outlet fittings.
• Two drain valves for water evacuation.
• A painted steel rack for holding the cylinders.
• A pressure gauge for reading the pressure.
• A safety valve with CE certificate.
• A manifold for the safety valve and pressure gauge.
• 316L stainless steel pipes for joining the cylinders.
• A shut-off valve.

Dimensions :

• Width : 76 cm
• Depth : 45 cm
• Height : 195 cm
• Weight : approximately 260 kg

TEK PLONGEE offers personalized installation quotes (compressor connection, inflation panel). Contact us for a quote (coordinates and quantity required).
