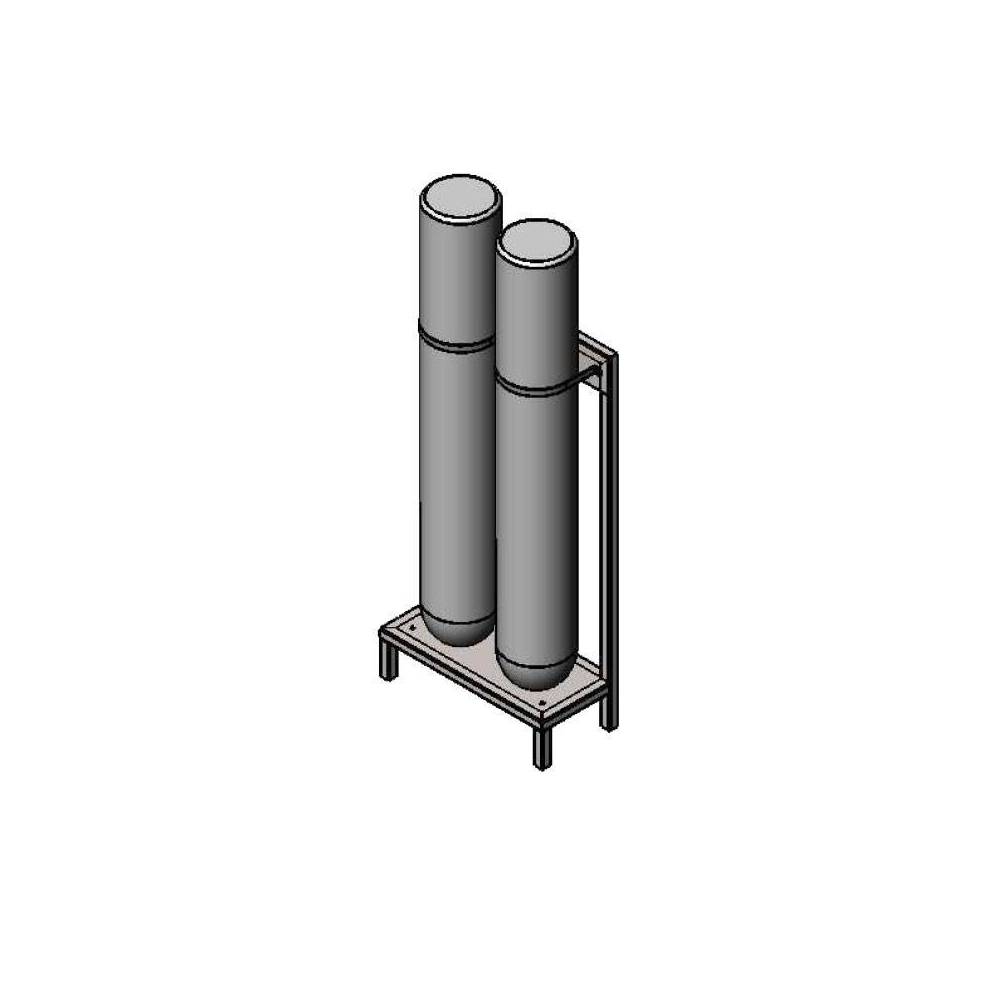

80L 300 bar buffer cylinders rack self-supporting frame

80L 300 bar Buffer Rack Self-Supporting Chassis

This buffer rack offers a high-pressure compressed air storage solution, with 80-liter cylinders and a 300 bar working pressure:

Main features:

• Cylinders: 80 liters, 300 bar, with condensation drain and dip tube
• Chassis: Self-supporting hot-dip galvanized steel
• Configurations: Available in racks of 2 to 6 cylinders
• Equipment included:
  • Heads with dip tube (1 per cylinder)
  • Drain valves (1 per cylinder)
  • Anti-vibration wall mounting collars
  • Pressure gauge, CE safety valve with certificate
  • Valve/pressure gauge manifold, fittings and 316L stainless steel tubes

Dimensions (width x depth x height):

• 2-cylinder rack: 76 x 35 x 193 cm (approx. 240 kg)
• 3-cylinder rack: 112 x 35 x 193 cm (approx. 360 kg)
• 4-cylinder rack: 152 x 35 x 193 cm (approx. 480 kg)
• 5-cylinder rack: 188 x 35 x 193 cm (approx. 600 kg)
• 6-cylinder rack: 224 x 35 x 193 cm (approx. 720 kg)

TEK-PLONGEE offers personalized installation quotes (compressor connection, inflation panel). Contact us for a quote (coordinates and quantity required).

Isolation valve not included.
