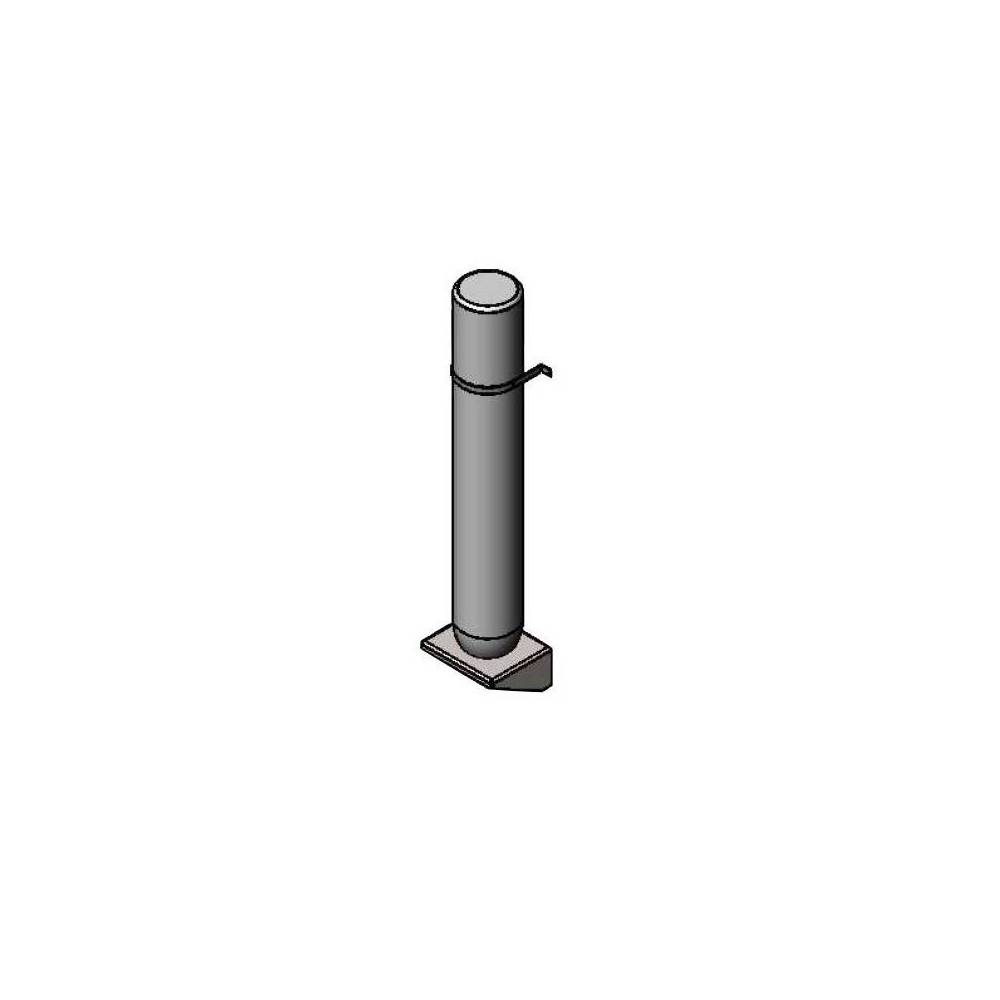

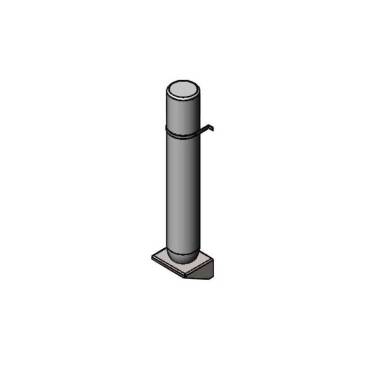

50L 300 bar Buffer Cylinders Rack Wall-Mounted

This wall-mounted buffer cylinders rack offers a high-pressure compressed air storage solution, with 50-liter cylinders and a 300 bar working pressure:

Main features:

• Cylinders: 50 liters, 300 bar, with condensation drain and dip tube
• Chassis: Hot-dip galvanized steel wall-mounted (ultra-compact: 26cm width per cylinder)
• Configurations: Available in racks of 1 to 6 cylinders
• Equipment included:
  • Heads with dip tube (1 per cylinder)
  • Drain valves (1 per cylinder)
  • Individual hot-dip galvanized steel wall brackets
  • Anti-vibration rubber pads
  • Anti-vibration wall mounting collars
  • Pressure gauge, CE safety valve with certificate
  • Valve/pressure gauge manifold, fittings and 316L stainless steel tubes

Dimensions (width x depth x height):

• 1-cylinder rack: 33 x 28 x 170 cm (approx. 80 kg)
• 2-cylinder rack: 76 x 28 x 170 cm (approx. 160 kg)
• 3-cylinder rack: 119 x 28 x 170 cm (approx. 240 kg)
• 4-cylinder rack: 162 x 28 x 170 cm (approx. 320 kg)
• 5-cylinder rack: 205 x 28 x 170 cm (approx. 400 kg)
• 6-cylinder rack: 248 x 28 x 170 cm (approx. 480 kg)

TEK-PLONGEE offers personalized installation quotes (compressor connection, inflation panel). Contact us for a quote (coordinates and quantity required).

Isolation valve not included.
