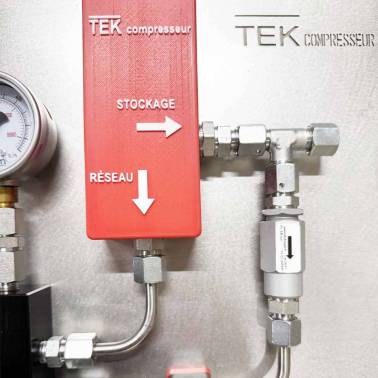

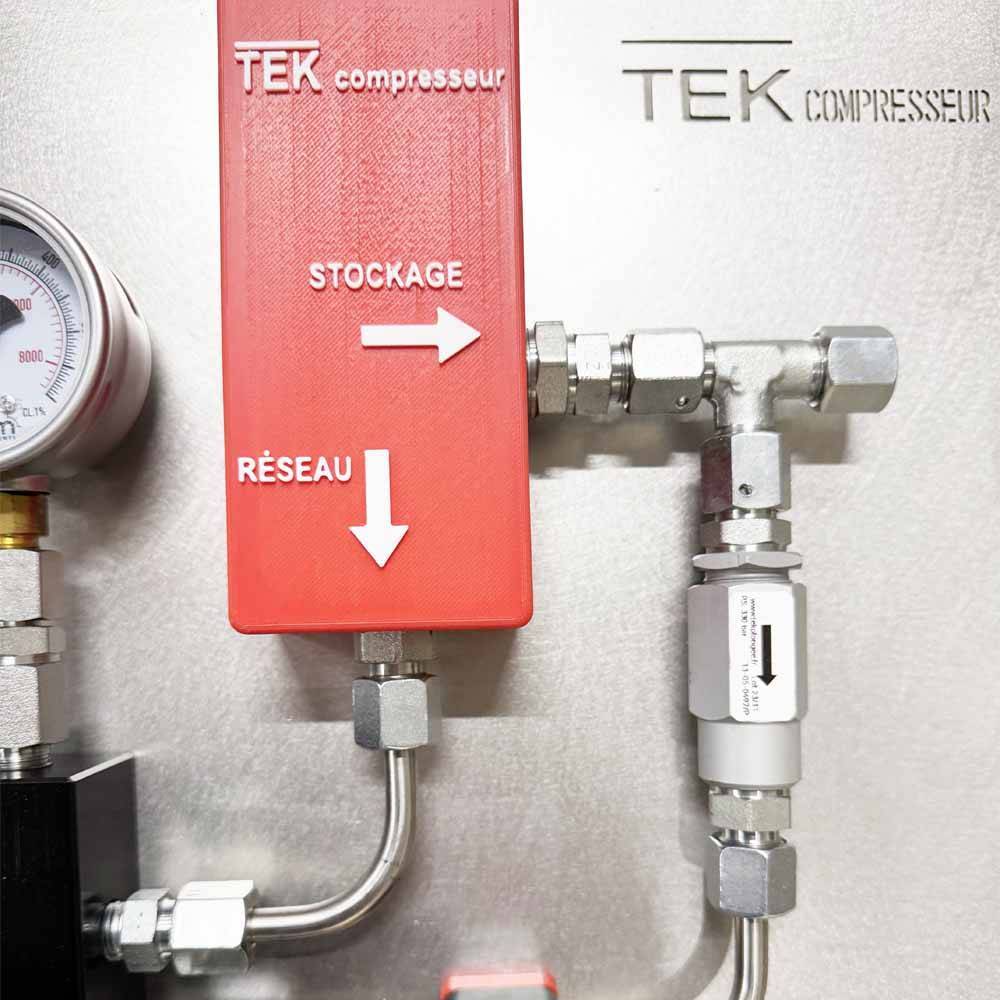

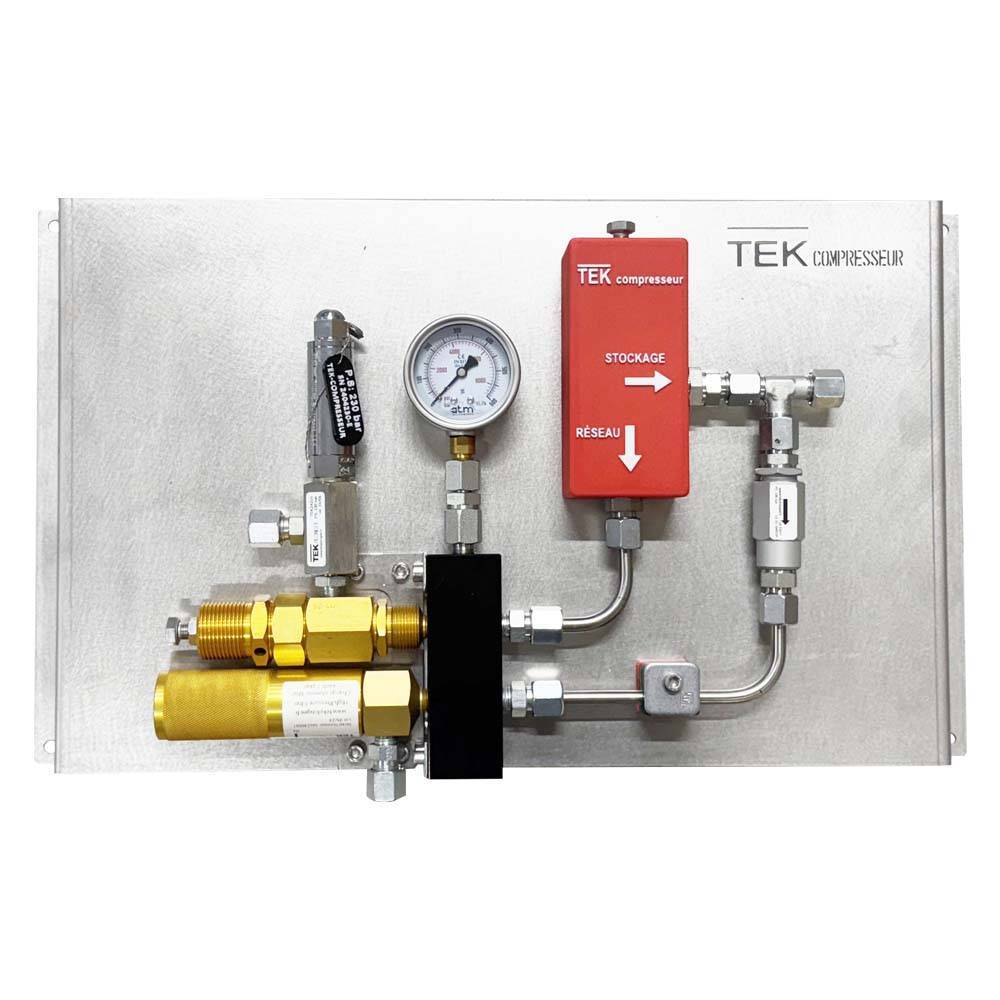

Storage-Inflation Ramp Management Plate

Inflation Dump Valve Priority Management Plate with 330/230 Bar Regulator

This system combines automated inflation management with an integrated regulator for optimal efficiency and safety:

Operation and benefits:

• Cylinder inflation priority: Direct inflation of cylinders if buffer tank pressure is below an adjustable threshold (240 bar default).
• Filling automation: Automatic air flow management, without valve manipulation.
• Time and energy savings: Compressor operates continuously until complete filling.
• Complete buffer tank draining possible to optimize inflation.
• Proven technology: Used in fire and rescue centers.

Technical specifications:

• Integrated regulator: 330 bar / 200-230 bar, adjustable from 150 to 300 bar.

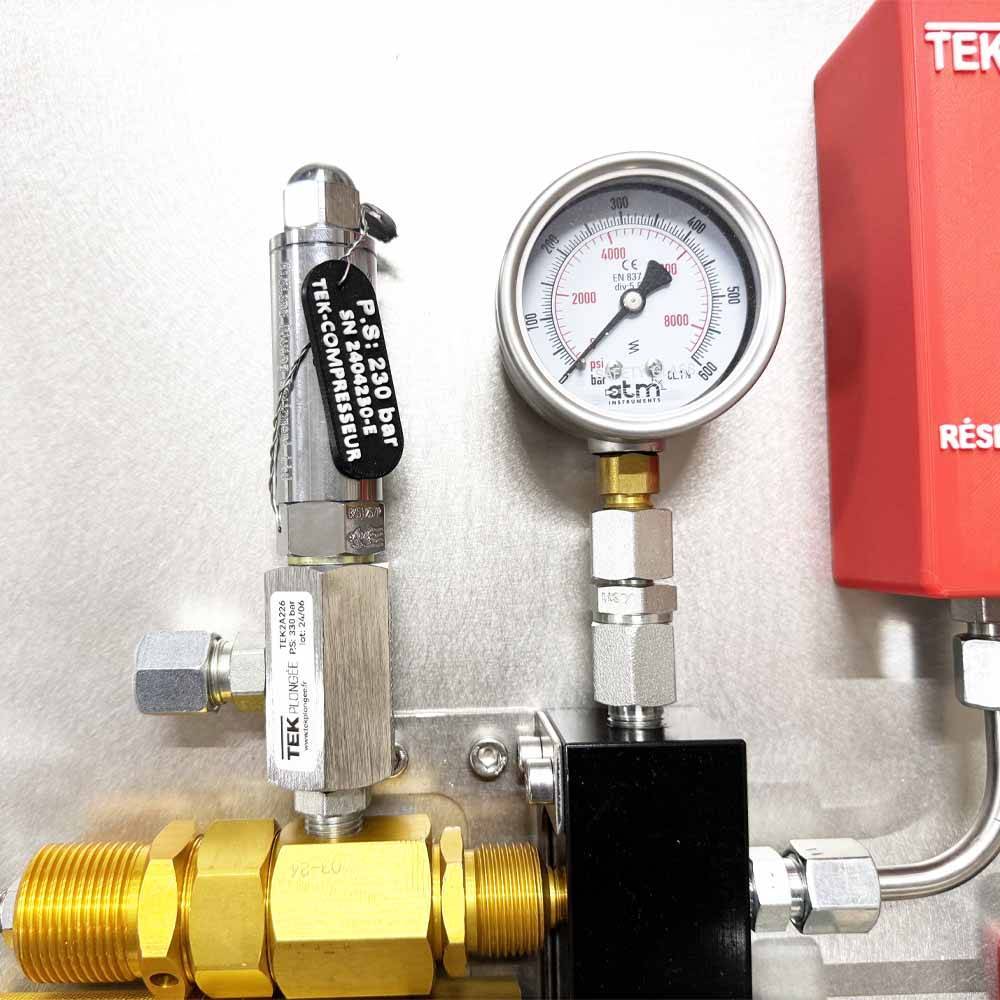

• Safety valve: Protects against overpressure, with sealing and certificate.

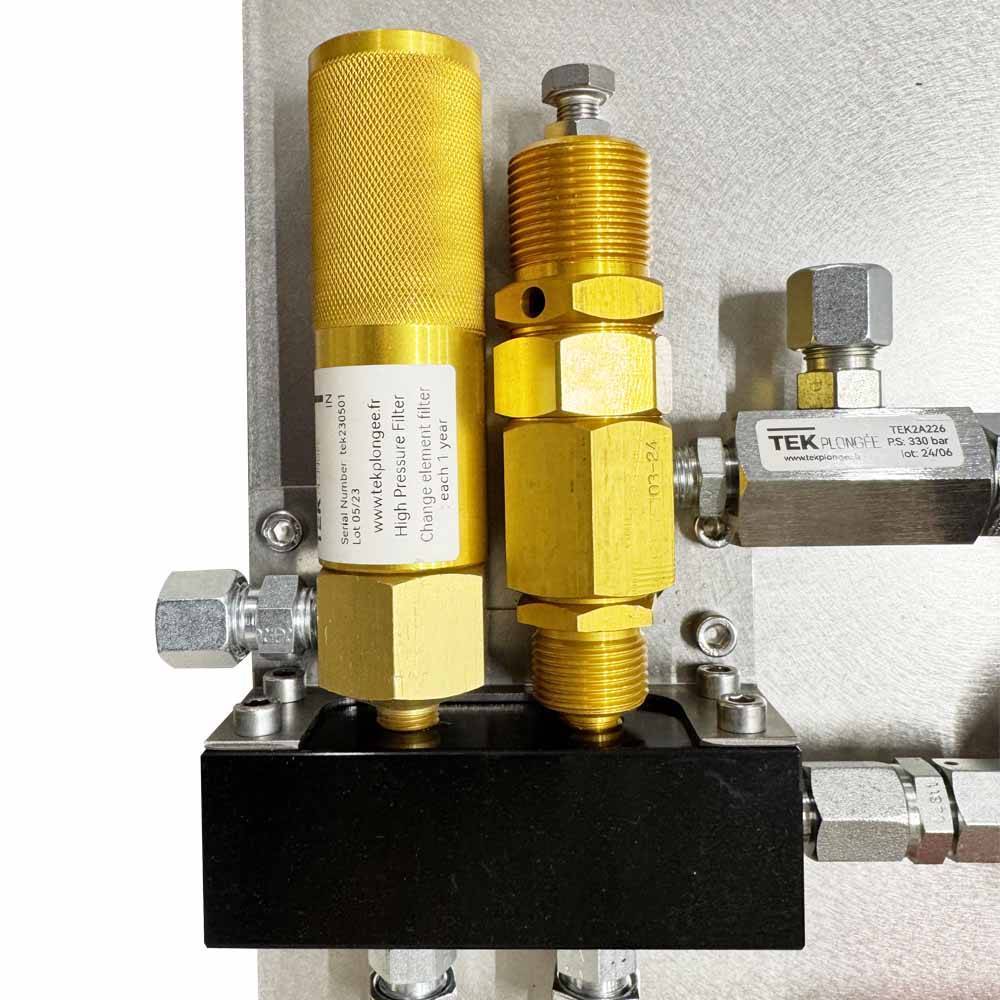

• Micronic protection filter at the compressor inlet.
• 304L stainless steel plate.
• Connectors: 8S, 6S or Coltri (to be specified when ordering).
