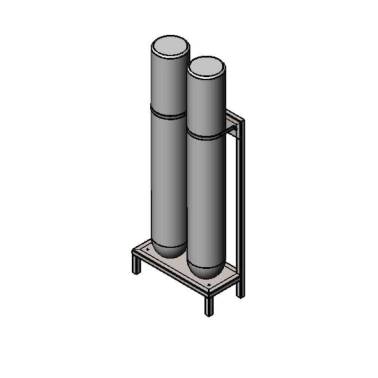

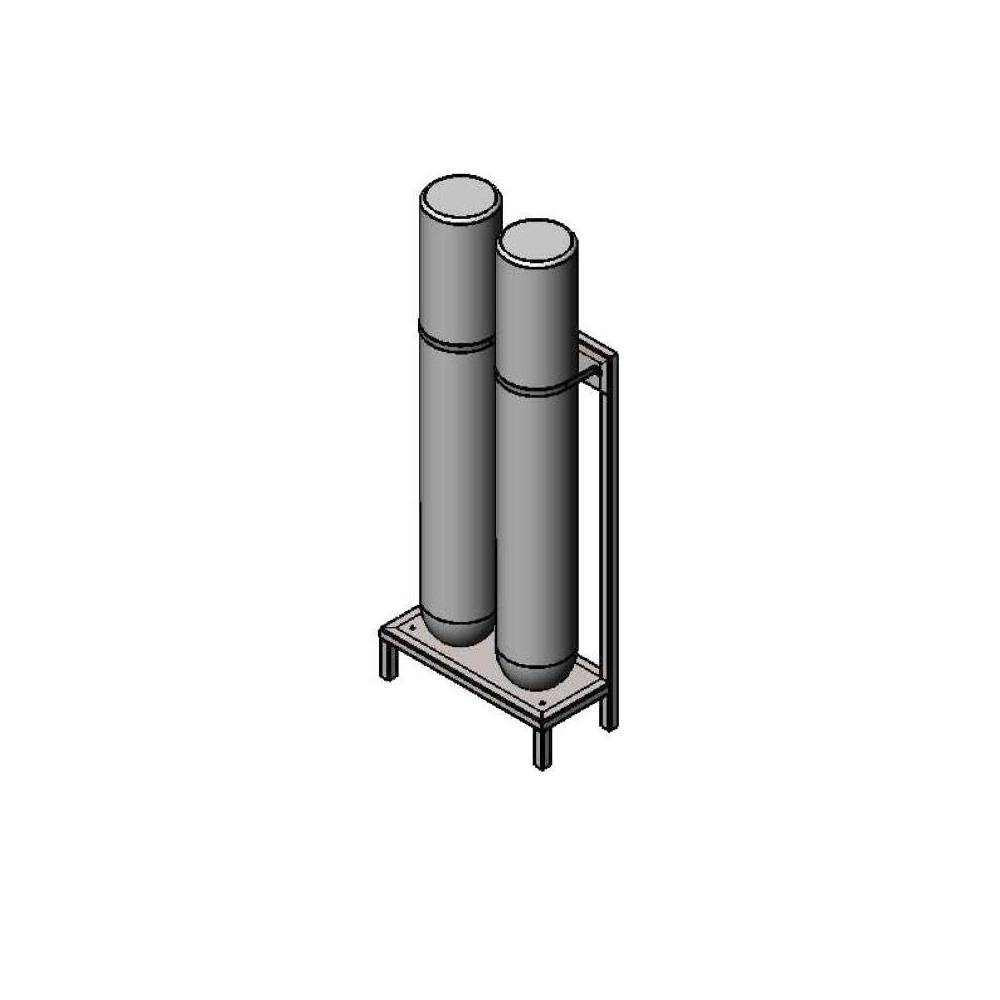

50L 300 bar buffer cylinders rack self-supporting frame

50L 300 bar Buffer Rack Self-Supporting Frame

This buffer rack offers a high-pressure compressed air storage solution, with 50-liter cylinders and a working pressure of 300 bar:

Key features:

• Cylinders: 50 liters, 300 bar, with condensation drain and dip tube
• Frame: Hot-dip galvanized steel self-supporting
• Configurations: Available in racks of 2 to 6 cylinders
• Included equipment:
  • Heads with dip tube (1 per cylinder)
  • Drain valves (1 per cylinder)
  • Anti-vibration wall mounting clamps
  • Pressure gauge, CE safety valve with certificate
  • Valve/pressure gauge manifold, fittings and 316L stainless steel tubes

Dimensions (width x depth x height):

• 2-cylinder rack: 76 x 35 x 165 cm (approx. 160 kg)
• 3-cylinder rack: 112 x 35 x 165 cm (approx. 240 kg)
• 4-cylinder rack: 152 x 35 x 165 cm (approx. 320 kg)
• 5-cylinder rack: 188 x 35 x 165 cm (approx. 400 kg)
• 6-cylinder rack: 224 x 35 x 165 cm (approx. 480 kg)

TEK-PLONGEE offers customized installation quotes (compressor connection, inflation panel). Contact us for a quote (contact details and quantity required).

Isolation valve not included.
