Waterproof housing Ikelite for PANASONIC GH6 et GH7

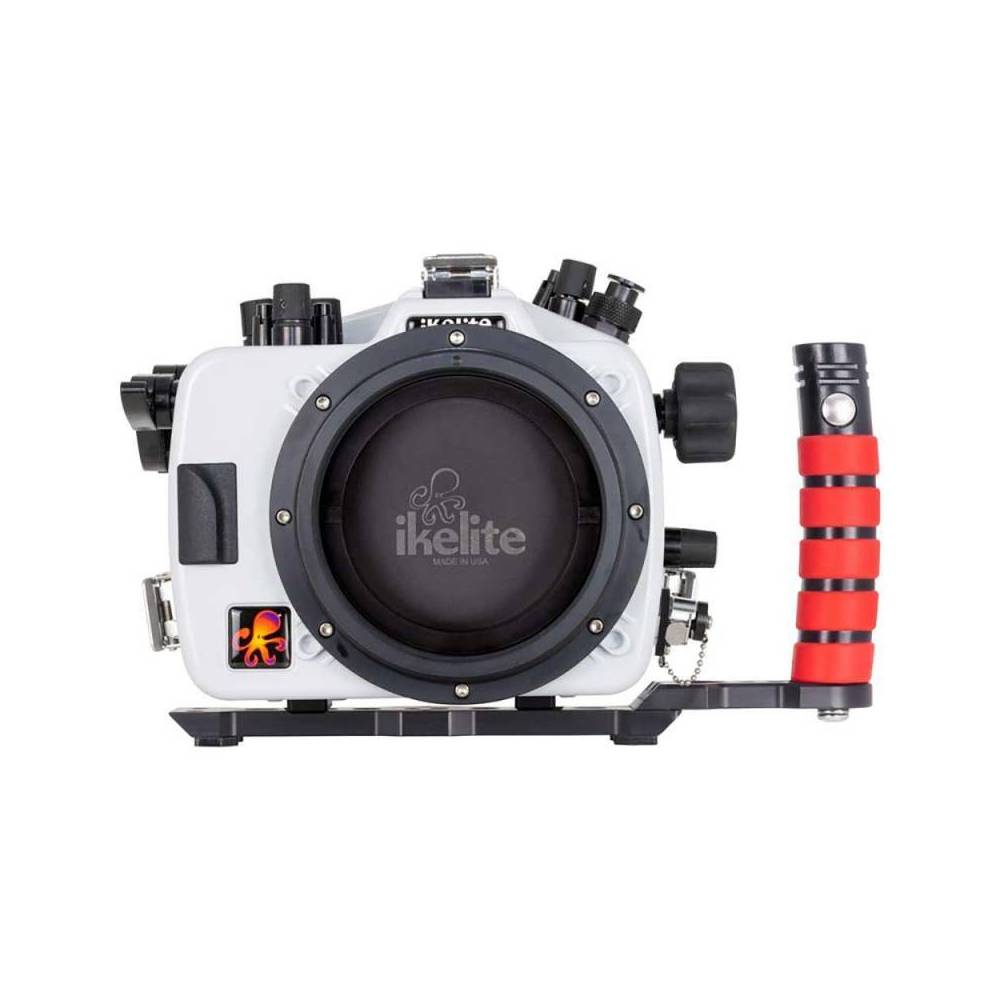

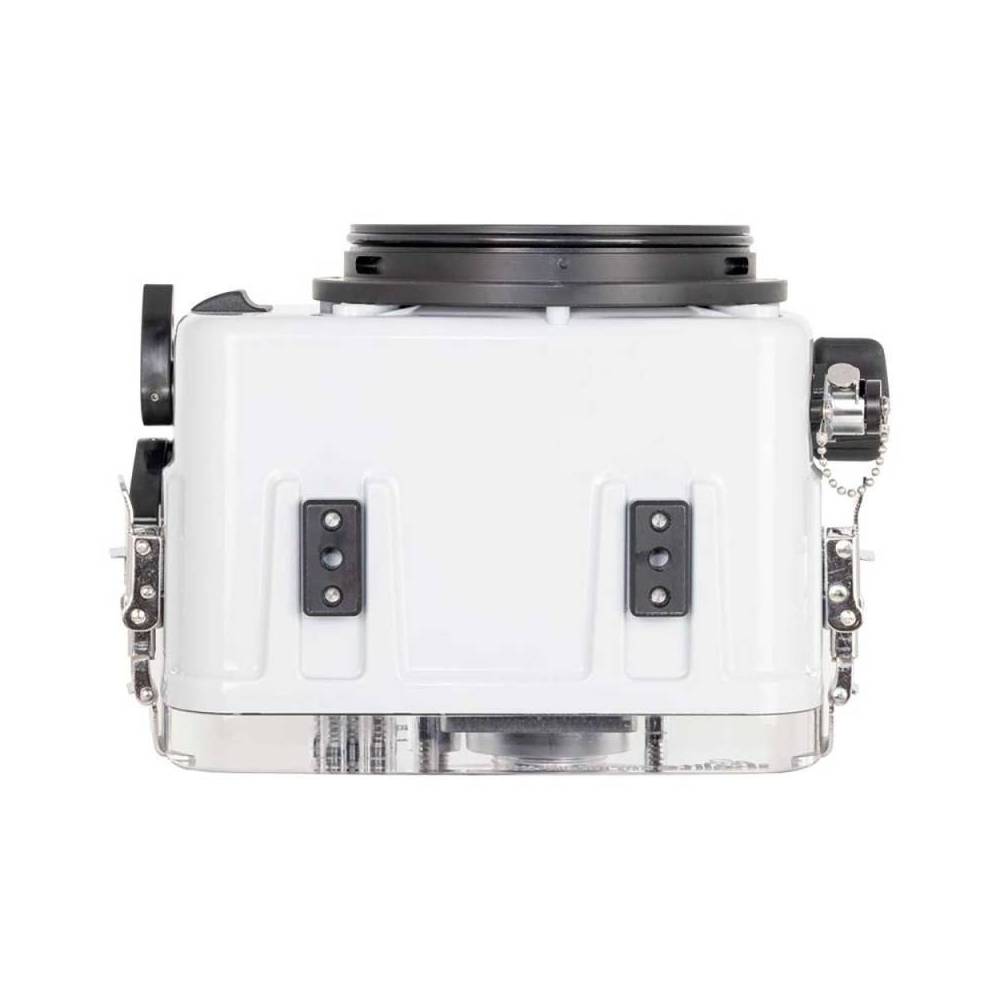

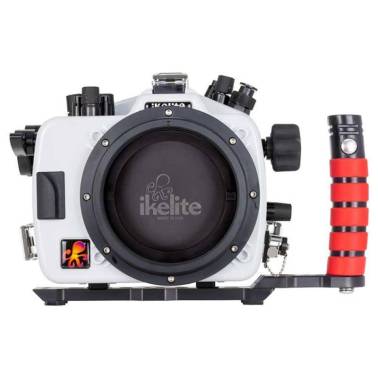

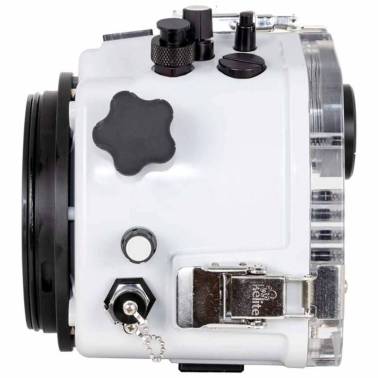

DL200 (DRY LOCK) Waterproof Housing for Panasonic Lumix DC-GH6 and GH7

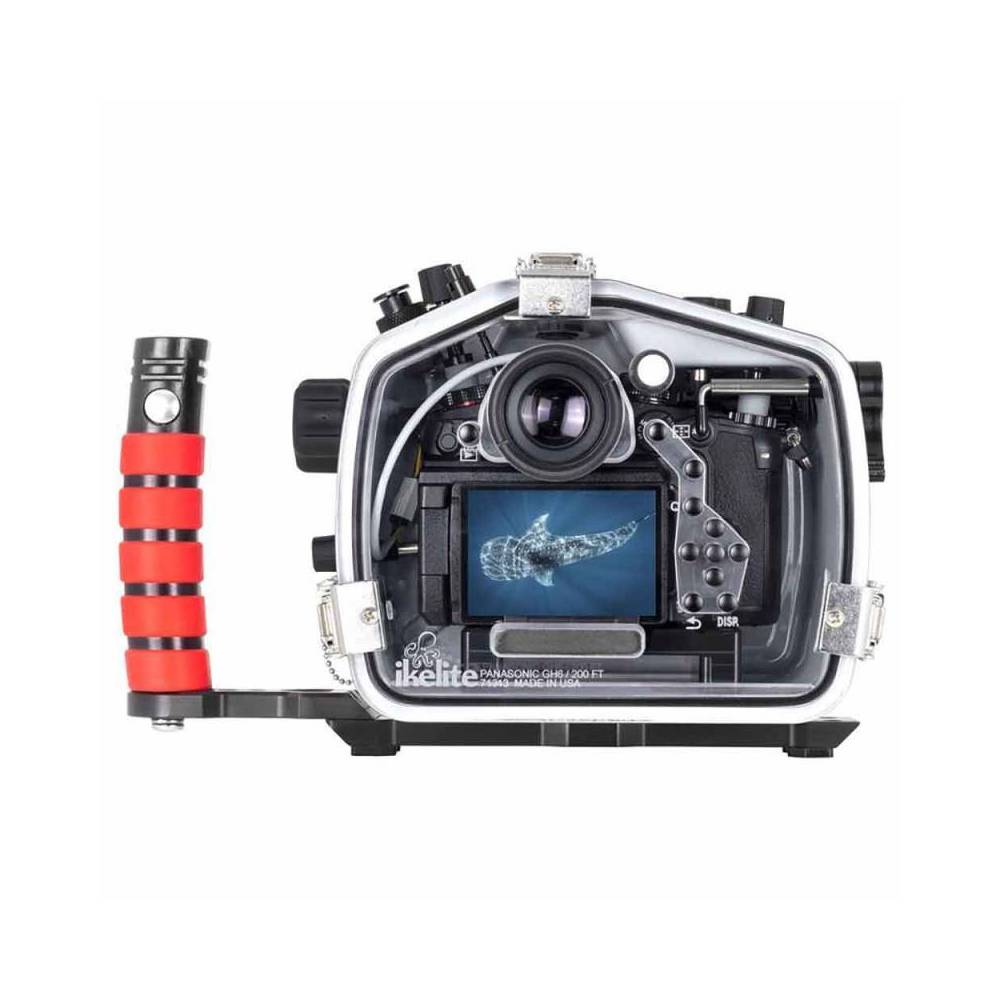

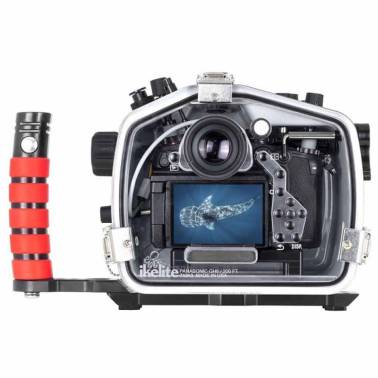

This next-generation housing ensures an optimal grip and ergonomic access to essential controls. The transparent Lexan back door allows easy verification of the camera’s position and control levers.

Its specially designed gray color reflects sunlight, reducing overheating, especially when shooting in 4K. Unlike black or transparent housings, it enhances LCD screen visibility.

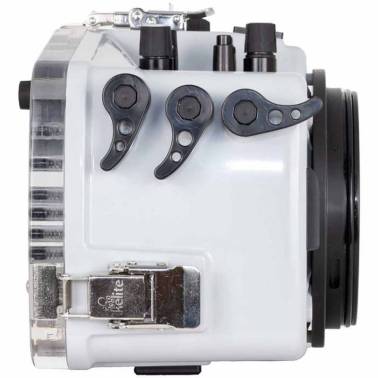

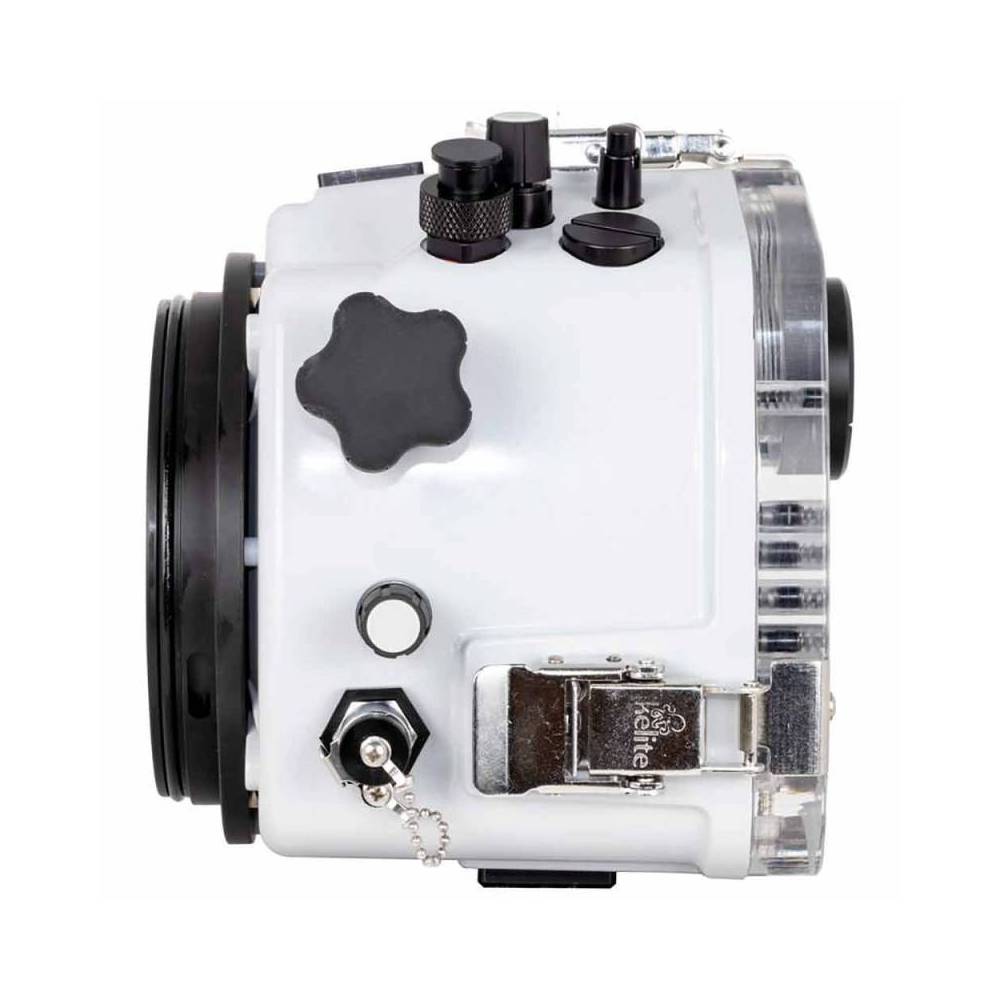

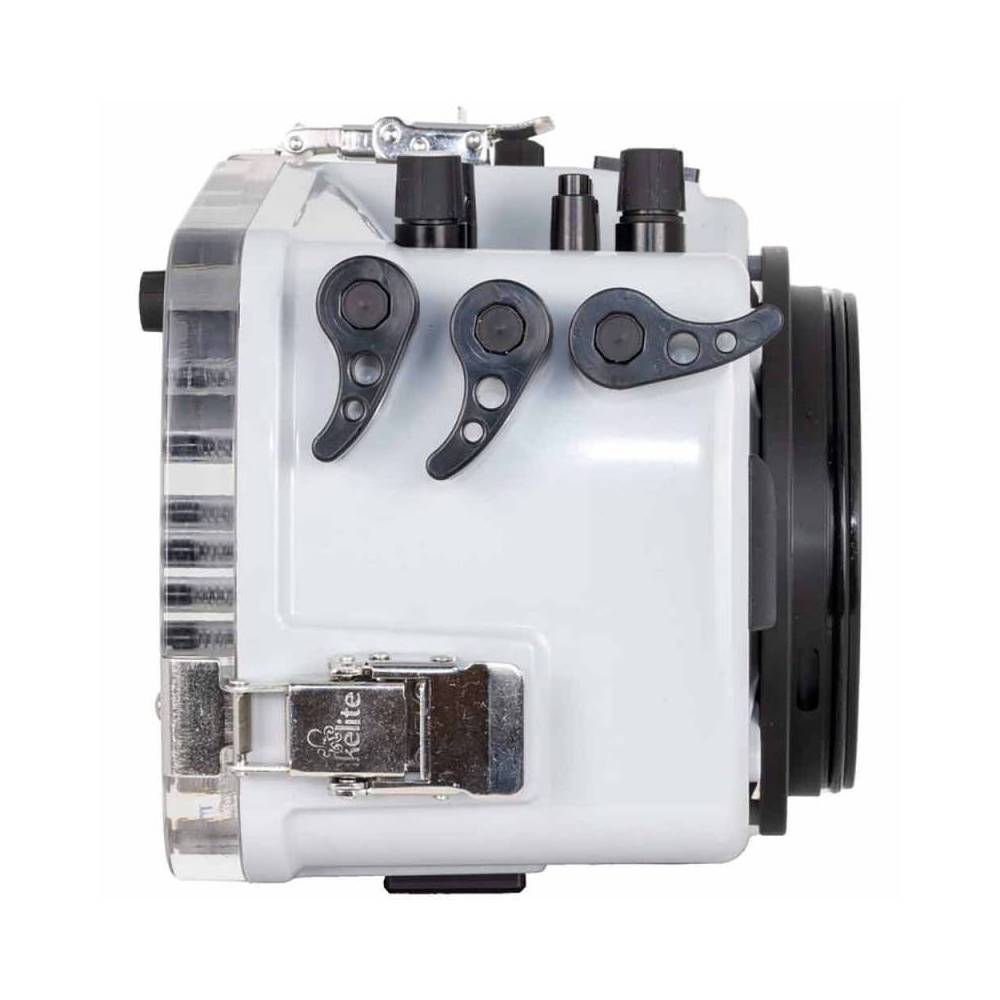

The levers and buttons provide access to most controls. A TTL converter (sold separately) automatically transmits exposure information to external strobes. The waterproof flash connector enables the use of Ikelite strobes (DS51, 160, 161, 162, 230), deactivating the camera’s built-in flash to extend battery life.

An extra-large zoom control allows precise focal adjustment. The housing features a 1/2" vacuum valve for leak testing before each dive (vacuum pump sold separately). Ideal for diving, water sports, and underwater photography.

Includes an M16 port for accessories, with an optional M24 port for an external HDMI monitor (optional, contact us).

Box contents:

• DL200 Waterproof Housing
• Pre-installed O-rings: rear (IKE 0132-61), front (IKE 0132-45)
• Zoom gear retainer (IKE 75900) (installed)
• Port cover (IKE 0200-92) (installed)
• Waterproof seal cap (IKE 9104-7) (installed)
• Base plate with left handle (IKE 4077-67) (installed)
• Zoom gear retainer tool (IKE 0945-06)
• 0.050" hex key (IKE 0945-11)
• 1 cc silicone lubricant tube

Accessible controls:

Access to all main controls, except:

• Viewfinder diopter adjustment
• Rear control dial
• Rear dial lock button (must be unlocked before inserting the camera)

Compatible ports and domes:

Supports a wide range of lenses with the DL "DRY LOCK" system.

Compatible accessories:

A selection of accessories and spare parts is available in the Accessories tab.

Need advice? Contact us to check compatibility with your equipment.

Compatible external strobes:

An external strobe enhances color accuracy and exposure. Fiber optic triggering is not possible.

For TTL functionality with Ikelite strobes, a Panasonic DL3 TTL converter and PT1 hotshoe (IKE 46032) are required (sold separately).

Recommended strobes:

• DS51 II (TTL with DL3 converter (IKE 46032) and manual)
• DS160 II (TTL with DL3 converter (IKE 46032) and manual)
• DS230 (TTL with DL3 converter (IKE 46032) and manual)
• Sea & Sea YS-D3 Duo (manual mode only)

Compatible lights:

Photo and video lighting solutions available. Contact us for tailored recommendations.
