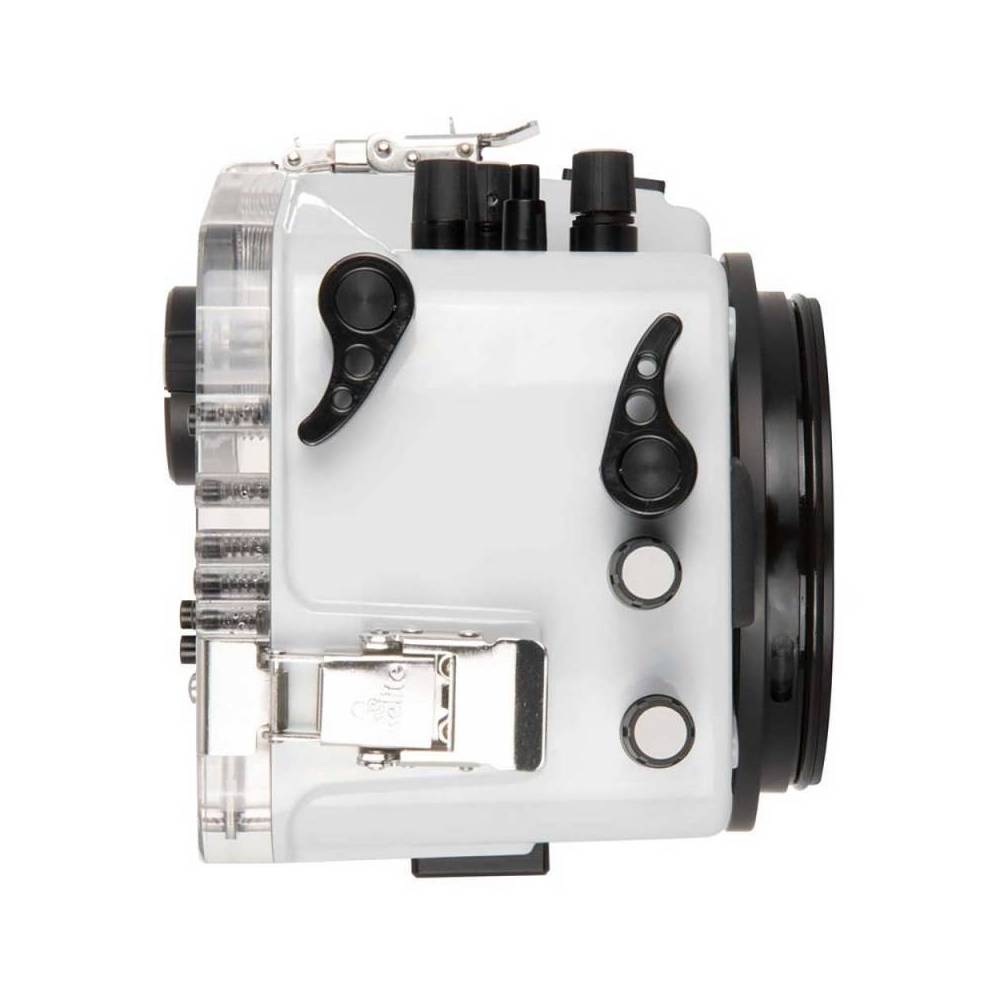

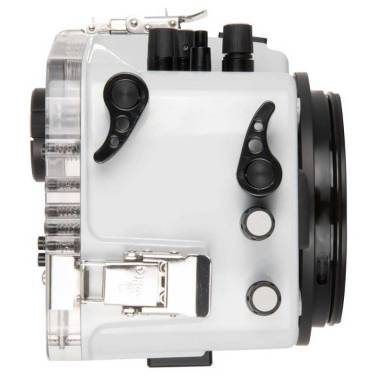

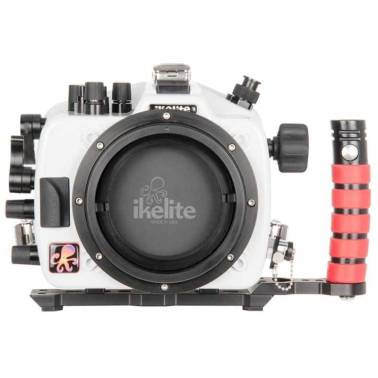

Waterproof housing Ikelite for SONY A7RIV et A9-II

DL200 Waterproof Housing (DRY LOCK) for Sony A9-II and Alpha 7R-IV

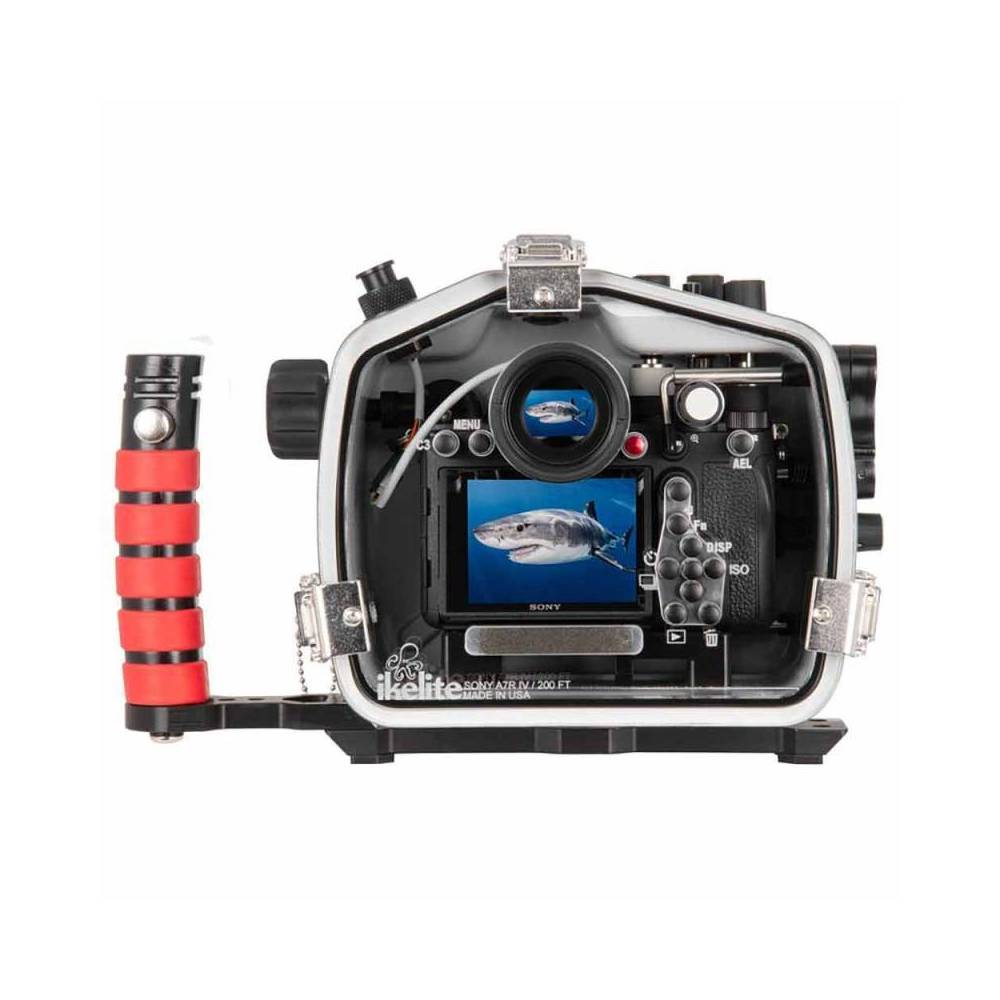

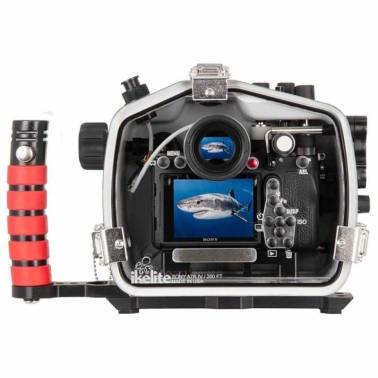

This next-generation housing offers excellent handling with its thoughtful design. The transparent Lexan back door allows easy verification of the camera body and control lever positioning inside the housing. The grey color reflects heat, optimizing cooling, especially when recording in 4K. Compared to black or transparent housings, it provides superior contrast for clearer LCD screen viewing. The levers and buttons allow access to almost all of the camera's controls.

The waterproof flash connection allows the use of an external Ikelite flash (DS51, 125, 160, 161). The synchronization cable disables the internal flash to save battery power. To enable the TTL function, a hotshoe TTL converter, sold separately, is required. The housing comes with an extra-large, flexible zoom control, offering precise focal adjustments. It is also equipped with a 1/2" vacuum valve, allowing you to test the sealing before each dive (Manual pump ref. (IKE 47011-00), sold separately). This housing is perfect for diving, watersports like surfing, and pool use.

Included with:

• Housing
• Rear O-ring (IKE 0132-59) (installed)
• Front O-ring (IKE 0132-45) (installed)
• Zoom pinion fixator (IKE 75900) (installed)
• Port hole cover (IKE 0200-92) (installed)
• Waterproof seal plug for waterproof connector (IKE 9104-7) (installed)
• Left handle plate (IKE 4077-67) (installed)
• Tool for zoom pinion fixator (IKE 0945-06)
• 0.050 inch hex wrench (IKE 0945-11)
• 1/16 inch hex wrench (IKE 0945-16)
• Silicone lubricant tube of 1 cc

Important : This housing is delivered without a port. The port is crucial for sealing and must be ordered separately, depending on the lens used. We recommend consulting us for personalized advice.

Accessible Controls:

This housing provides access to the main controls of the camera, except for:

• Control wheel (wheel functions can be accessed using the front and rear wheels)
• Joystick (up, down, left, right) – button press on joystick is possible
• Diopter adjustment wheel

Compatible Ports and Domes:

The DL "DRY LOCK" system allows the use of most lenses.

Compatible Accessories:

We offer a range of accessories and replacement parts for this housing. Check the "accessories" tab on this product page or contact us for advice on compatibility with your gear.

Compatible External Flashes:

Using an external flash is recommended to enhance color and exposure for your subjects. This housing does not support fiber optic flash triggering.

To activate TTL functionality with Ikelite flashes, a TTL DL2 Sony ST1 converter (ref. (IKE 46042-00)) must be purchased separately.

Recommended Flashes:

• Flash DS51 II (TTL with DL2 converter + ST1 connector (IKE 46042) and Manual)
• Flash DS160 II (TTL with DL2 converter + ST1 connector (IKE 46042) and Manual)
• Flash DS230 (TTL with DL2 converter + ST1 connector (IKE 46042) and Manual)

Compatible Lighting:

We also offer compatible photo and video lighting for this housing. Feel free to contact us for personalized advice.
